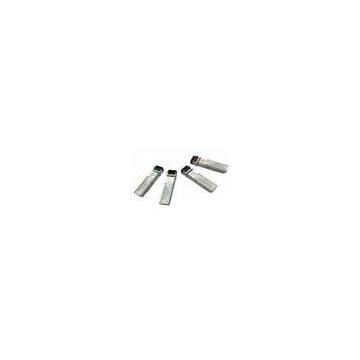

SFP Tranceiver FS-1550-1800

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

FS-1550-1800

1.25 Gbps SFP Optical Transceiver, 80km Reach

Product View
P/N：	FS-1550-1800 (D)	Data Rate：	1.25Gbps
Distance：	80km	LD：	1550nm DFB
PD：	PIN	TX Power：	0～5dBm
RX Sens：	-23dBm	Temp：	CN

Features

Data-rate of 1.25Gbps operation 1550nm DFB laser and PIN photodetector for 80km transmission Compliant with SFP MSA and SFF-8472 with duplex LC receptacle Digital Diagnostic Monitoring: Internal Calibration or External Calibration Compatible with SONET OC-24-LR-1 Compatible with RoHS +3.3V single power supply Operating case temperature: Standard :0 to +70°C Extended : -20 to +85°C

Applications

Gigabit Ethernet Fiber Channel Switch to Switch interface Switched backplane applications Router/Server interface Other optical transmission systems

Description

The SFP transceiver sare high performance, cost effective modules supporting data - rate of 1.25Gbps and 80km transmission distance with SMF.

The transceiver consistsof three sections: a DFBl aser transmitter, a PIN photo diodeintegrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceiver sare compatible with SFP Multi-Source Agreement(MSA) and SFF-8472. Forfurther

Absolute Maximum Ratings

Table1-Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit
Supply Voltage	Vcc	-0.5	4.5	V
Storage Temperature	Ts	-40	+85	°C
Operating Humidity	-	5	85	%

Recommended Operating Conditions

Table2-Recommended Operating Conditions

Parameter		Symbol	Min	Typical	Max	Unit
Operating Case Temperature	Standard	Tc	0		+70	°C
Operating Case Temperature	Extended	Tc	-20		+85	°C
Power Supply Voltage		Vcc	3.13	3.3	3.47	V
Power Supply Current		Icc			300	mA
Data Rate				1.25		Gbps

Opticaland Electrical Characteristics

FS-1550-1800:
