Certification:CE,FCC,MSDS

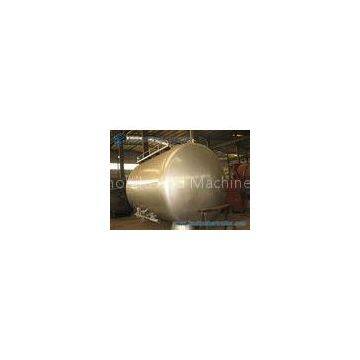

15m3 Dry Bulk Tank Cylinder Shpae Horizontal Cement Powder Tanker
Description & Applications:
The dry bulk horizontal cement tanker, the main part of bottom supporting parts, dry bulk storage tanker, pneumatic piping system, unloading devices, etc. Large bulk cement transport semi trailer is suitable for fly ash, cement, lime powder, mineral powder, granular base, flour and other grain size is not more than 0.1mm powder dry bulk transportation.
1, technical indicators: work pressure under the condition of 0.2MPA, the discharging speed is 1.2~1.5T/MIN, the residual rate ≤ 2 ‰. Under certain conditions, the discharge height ≥ 25M.
2, large bulk cement tanker features: can be independent of warehouse storage, loading of different powder materials, unloading speed, low residual rate, high safety performance, easy to operate.
Competitive Advantage:
We can be completely customized all different truck and trailer, and equipments according to customer needs; with advanced design concept; the production process and the first class process, as well as services; competitive prices.
Specifications:
15 m3 Dry Bulk Cement Horizontal Tanker
|
TIEM |
SPECIFICATION |
REMAR |
|
The design standard |
SY0015HFLG |
GB/T16563-1996 ISO1496-3 |
|
Tank Shape |
Cylinder shape |
Horizontal |
|
Tanker wall |
Single wall |
|
|
Maximum Capacity |
15 m3 * 1 = 15 m3 |
Single bin |
|
Dimension |
3000*2600 mm |
L*DN (customized size) |
|
Curb Weight |
Approx 2600 kg |
|
|
Payload |
Approx 15000 kg |
Water load at 20℃ |
|
Working Temperature |
-19~70 ℃ |
|
|
Max working Pressure |
2 Bar |
|
|
Tank Materials |
Q345 Carbon steel |
Opting aluminum |
|
Thickness |
5 mm |
|
|
End Enclosure |
5 mm |
Flanged flat head |
|
Compound Manhole |
DN500 |
Professional pressure manhole |
|
Devices |
All in accordance with the factory design. Before the production we will provide drawing for reference. |
|
|
Optional |
Opting independently power unit and air compressor. |
