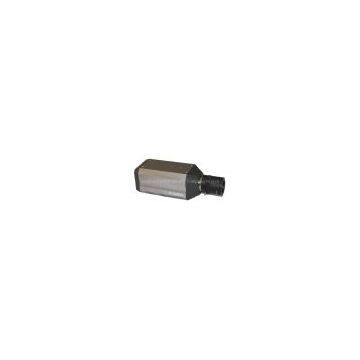

Help CenterMPEG-4 Standard Box IP Camera
Negotiable
MOQ: 5 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
iQ-view
Place of Origin:
China
Model Number:
MSIPB-A001
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
Brand Name
iQ-view
Place of Origin
China
Model Number
MSIPB-A001
| Model No. | MSIPB-A001 | |
| CPU | Operation system | Embedded Linux OS |
| Microcomputer processor | 32Bit RSIC Embedded Processor | |
| Video | Compression format | MPEG-4 |
| Signal system | PAL or NTSC | |
| Frame rate | PAL: 25fps, NTSC:30fps | |
| Resolution | D1(720*576), CIF(352*288), FIELD(720*288), QCIF(176*144) | |
| Video adjustment | Brightness, contrast, chroma, saturation | |
| Sensor | 1/3 SONY CCD | |
| Horizontal resolution | 420 TVL | |
| Minimum illumination | 0.1 LUX/F1.2 | |
| S/N ratio | >48dB | |
| Shutter speed | PAL:1/50s - 1/100,000s NTSC:1/60s- 1/100,000s | |
| WB | Auto | |
| BLC | Auto | |
| Lens | standard: 6mm Optional: 3.6mm 8mm CS interface | |
| Nightvision | Nightvision | No |
| Audio | Processor | One way audio |
| Audio gain | AGC | |
| P/T | P/T control | Accept external connection RS485 P/T |
| P/T protocol | PELCO-D protocol Baud rate: 9600 address: 1 | |
| Network | Network interface | RJ-45 10/100Mb self-adaptable Ethernet slot |
| Delay time | < 500 MSEL(0.50 second) in LAN | |
| Network procotol | TCP/IP,HTTP,ICMP,DHCP,FTP,SMTP,PPPoE etc. | |
| RTSP |
Support RTSP 3G cell phone monitor (support Nokia Sybiam S60 System, Windows mobile system) |
|
| Online visitor | Support 15 visitors at the same time | |
| Network procotol | Dynamic IP address, static IP address,PPPOE | |
| Others | Material | Aluminium alloy |
| Use environment | Wireless, gun shape | |
| Power | DC12V 1A | |
| Temperature | -10~50 °C | |
| Humidity | 95% RH | |
| Size |
Item size: 152mm x 60mm x 59mm (LxWxH) Packaging size: 210mm x 170mm x 85mm (LxWxH) |
|
| Weight | N.W.: 405g G.W.: 805g (Note: for real products ) | |
| Attachment | Adaptor CD(including manual) bracket | |
| Alarm | Input/output | 2 Ch / 2Ch |
| Motion detection | Support 16 motion detection regions | |
| Alarm action | Support Email photo, FTP photo, FTP video, message,etc. | |
| System | System requirement |
Microsoft Win98 SE/ME/2000/XP, Vista, Internet Explorer 5.0, NET4.5 or above |
| Features | System security | Supports two-level account, password, user authority management |
| DDNS(free) | Support | |
| CMS(free) |
1,4,9,16,25,36, 64-channel CMS, no user limited professional CMS, centralized monitor, remote record and playback , Skype message alarm, skype telephone alarm |
|
| IE super-client(free) |
No need to install software, IE monitor management, message alarm setting, management, save alarm pictures |
|
