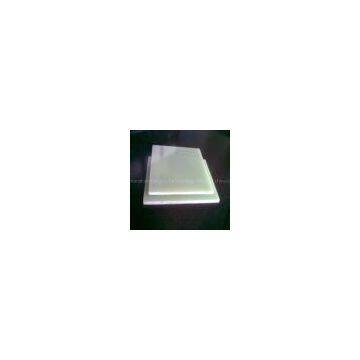

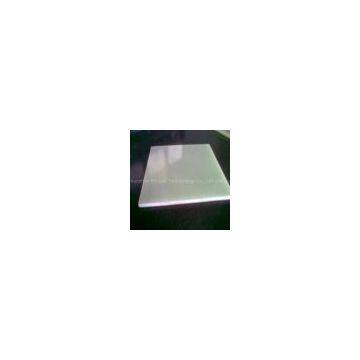

Epoxy Glass Cloth Laminated Sheets-FR4

Epoxy Glass Cloth Laminated sheets

(also known as: glass fibre epoxy laminate, epoxy glass laminate, epoxy glass cloth laminated sheet, epoxy glass fiber laminate,glass fibre epoxy laminate, epoxy fiberglass laminate, FR4/G10 unclad laminate, FR-4 garolite, G10/FR4 rigid laminate)

Descriptions:

These grades are composed of glass woven fabric base impregnated with an epoxy resin binder.

They have extremely high mechanical strength and electrical strength.

Good dielectric properties under dry and humid conditions.

Excellent rigidity and dimensional stability.

Applications:

Widely used as insulating structural parts in electrical & mechanical equipments,

such as generators,motors, transformer, PC boards, etc.

Specifications:

1) Grade:  G10/FR4

2) Color:  Natural Green; Yellow; Black

3) Thickness range: 0.1mm to 180mm.

4) Sheet Size:  915*1220mm; 1020*1220mm;

                       1020*2040mm; 1220*2470mm;


FR-4 glass epoxy is a popular and versatile high pressure thermoset plastic laminate grade with good strength to weight ratios. With near zero water absorption FR-4 is most commonly used as an electrical insulator possessing considerable mechanical strength. The material is known to retain its high mechanical values and electrical insulating qualities in both dry and humid conditions. These attributes, along with good fabrication characteristics, lend utility to this grade for a wide variety of electrical and mechanical applications.
