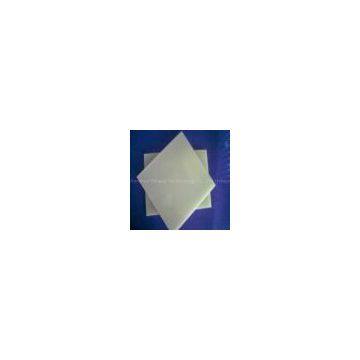

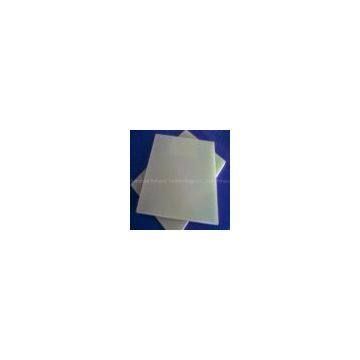

Epoxy Glass Fabric Laminated Sheets

Epoxy Glass Fabric Laminated sheets

(also known as: glass fibre epoxy laminate, epoxy glass laminate, epoxy glass cloth laminated sheet, epoxy glass fiber laminate,glass fibre epoxy laminate, epoxy fiberglass laminate, FR4/G10 unclad laminate, FR-4 garolite, G10/FR4 rigid laminate)

Descriptions:

These grades are composed of glass woven fabric base impregnated with an epoxy resin binder.

They have extremely high mechanical strength and electrical strength.

Good dielectric properties under dry and humid conditions.

Excellent rigidity and dimensional stability.

Applications:

Widely used as insulating structural parts in electrical & mechanical equipments,

such as generators,motors, transformer, PC boards, etc.

Specifications:

1) Grade:  G10/FR4

2) Color:  Natural Green; Yellow; Black

3) Thickness range: 0.1mm to 180mm.

4) Sheet Size:  915*1220mm; 1020*1220mm;

                       1020*2040mm; 1220*2470mm;


FR-4 glass epoxy is a popular and versatile high pressure thermoset plastic laminate grade with good strength to weight ratios. With near zero water absorption FR-4 is most commonly used as an electrical insulator possessing considerable mechanical strength. The material is known to retain its high mechanical values and electrical insulating qualities in both dry and humid conditions. These attributes, along with good fabrication characteristics, lend utility to this grade for a wide variety of electrical and mechanical applications.

G10-FR4 (FR4) is a fire rated electrical-grade, dielectric fiberglass laminate epoxy resin system combined with a glass fabric substrate. The abbreviation "FR4" means:  F (for flame) and R (for retardancies) and the 4 is a # 4 epoxy. FR4 grades offer excellent chemical resistance, flame ratings (UL94-VO) and electrical properties under dry and humid conditions.  FR4 also features high flexural, impact, superior mechanical strength and bond strength at temperatures up to 130°C. G10-FR4 is suitable for structural, electronic, pc boards and electrical applications.

Epoxy glass cloth laminated sheet for magnetic conductivity, with high mechanical
strength, heat-resistance, with good magnetic permeability.
Suitable for making magnetic slot and wedge for motors.
