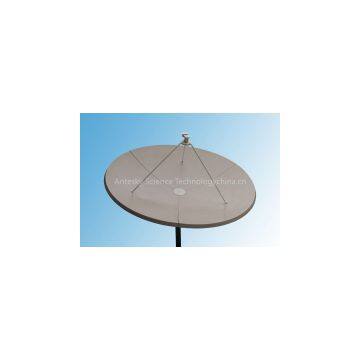

3.0M TVRO Antenna

3.0m SMC antenna reflector adoptscompression molding with the characteristics of high precision, goodconsistency, and non-deformation. And it also has the features of low densityand it is hyperbaric, which is stronger than steel and lighter than aluminum.And its compressive capability is 12 times higher than aluminum. Reflector withmore pieces combination has the features of good exchanging capacity,anti-corrosion resistance, anti aging and long lifetime up to 15 to 20 years. Speciallydesigned feed is matched perfectly with reflector, which makes transmit-receivereach maximum efficiency. Motorized polar tracking structure can satisfy fullorbit satellite cover. And the assembly and adjustment is simple andpracticable. The reflector adopts orange peel design which can have thefunction of waterproof and reduce damage to high-frequency tuner.

ELECTRICAL SPECIFICATION

Diameter 4.5M

Operating Frequency, GHz    C-Band   Ku-Band

       Receive   Receive

       3.7～4.2  10.75～12.95

Gain, Mid-band, dBi      39.7 48.8

Polarization    Linear     Linear

VSWR    1.3:1       1.3:1

Antenna Noise Temperature, 2-port feed

30° Elevation  30°K       26°K

-3dB Beam Width   1.7   0.6

Feed Interface CPR-229G      WR-75

Feed Insertion Loss, dB  0.15 0.2   0.25 0.25

Radiation Pattern:First Sidelobe    -20dB

MECHANICAL SPECIFICATION

Antenna Type  Prime Focus Antenna

Reflector material   8 Segment Glass Fiber Reinforced Polyester SMC

Feed installation type     Single arm supporting/three pole supporting

Surface Accuracy (RMS)       ≤ 0.35mm

Azimuth  0º~360ºcontinuous adjustment

Elevation 0º~90ºcontinuous fine adjustment

Transportation specification   220kg

Antenna Drive       Manual or Motorized drive

ENVIRONMENTAL SPECIFICATION

Wind load       Normal operation: 22mps

       Survival:40mps

Adaptive temperature     Normal operation: -40℃~ 60℃

       Maintenance:-45℃ ~ 70℃

Atmospheric conditions  It is applied to damp, saltier and pollutedclimatic environment.
