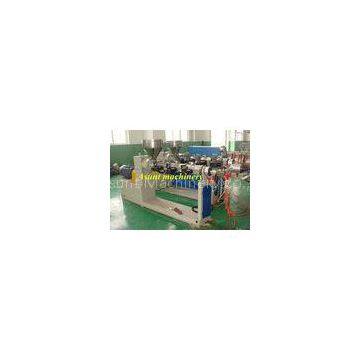

PP Plastic Pipe Making Machine 380v for Double Wall Corrugated Pipe
Specifications:
|
Certificate |
CE |
|
Automatic Grade |
Automatic |
|
Voltage |
380v |
|
Host motor power |
100kw |
|
Product Type |
PE |
|
Processing Type |
Processing Type |
|
Pipe Diameter |
150-300 |
Description:
1. The forming system of this line consists of mould and corrugator. The mould blocks can be easily
changed and they may have air or water cooling system. The belling process can also be realized on line.
High precision cutting can be guaranteed by rotation type cutting machine.
2. This production line is composed of extruder,mould,cooling device traction and cutting device,electric
control part and so on.
3. Unique design adopted by mold running system, the compact structure ensure the corrugated pipe
forming machine running smoothly, so the equipment has a longer service life.
4. New structure of circulating water tubing system avoid the inertial impact happened in present machines
with old design.
Applications:
1. This kind of corrugated pipe is mainly used for underground water drainage system.
2. Drainage pipes for fields, streets and roads, squares and buildings
3. Protection pipes for cables, district heating systems
4. Protection pipes for tv, glassfiber, telephone, electricity, IT and computer
Competitive Advantage:
1. Different types of extruders can be selected to match with the production line according to the material
properties.
2. Unique in the industry! The left frame and the right frame which the mould blocks are mounted on can
open and close freely. It makes the operation and maintenance easier
3. Unique in the industry! No platform which carry the mould blocks running and fixed central height of the
bearer plate which carry mould blocks make the operation of production easier.
4. Machine is composed of extruder, die, vacuum calibration,cooling unit, haul-off and rotary cutter and all the machines controls base with the control elements with easy operation.
5. Our machine are approved with CE Certification,with longer using life, high precision and stable
performance.
6. Reasonable structure,high automation level,simple and stable operation,high efficiency.
7. It is characterized by high efficiency, easy to operate and control,so it will lower your labor cost
,improve efficiency thus.
8. Environmental protection and long life used.High yield and high quality.
9. Far ahead in the industry! Innovative high-speed cooling solution of mould blocks brings higher output!
