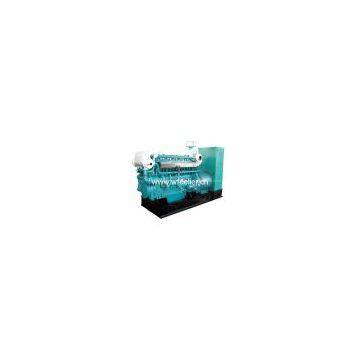

Marine Diesel Engine Generating Sets

THE SPECIFICATIONS OF THE ENGINE:

1)    The rated speed : 1500rpm, four strokes, inline. Fan and water tank cooling system, up to the ISO3046 standard

2)   The rated output: from 15kW (18.75kVA) to 90kW (112.5kVA)

3)  The engine model: RICARDO

4)  The character of the engine:

          High efficiency. Low exhaust,good start eddiciency

          24V DC start motor

          Egnine driven alternator

          High pressure oil pump

          Turbine charge

          Three filters

          SAE flywheel shell

THE SPECIFICATIONS OF THE ALTERNATOR:

The world first class alternator, up to the  GB755, BS5000, VDE0530, IEC34-1, CSA22.2, AS2359 standard,brushless and self-excitation,it be can supply excitation in many cases:

STAMFORD

Standard pitch winding can be inhibit current’s nterruption

Insulation Class: H  Protection class: H

 Frequency at stable state:  ≤±1.0%;

Telephone’s interference: THF < 2%, TIF < 50;

THE SPECIFICATIONS OF THE GENERATING SET:

The basic specifications: 230 / 400V AC, 50Hz / 60Hz, 0.8Pf , three phase four wires

Character:   base fuel tank for 8 hours

Use: can be used for the open type and the soundproof type , automatic type

Control system:
a) Automatic alarm system: the unit has the acousto-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current
b) Operation display:
i) Unit voltage, tri-phase load current and frequency display
 ii) Water temperature, oil pressure display
iii) Fuel level, fuel temperature display

 iv) Audible and visual alarm lamps and buzzers

Supply standard collocation:
 a) Diesel engine with all accessories, 3 filter, electric systems
 b) Alternator
 c) Steel structure
 d) sea water and fresh exchange heater
 e) Flange connector
 f) 12 / 24V starting motor and charge engine
 g) Air cleaner, fuel cleaner,   oil cleaner
  h) On-board control panel
  i) MCCB air conservation switch
   j) 12 / 24V starting accumulator and Battery line
   k) Set shock absorber
