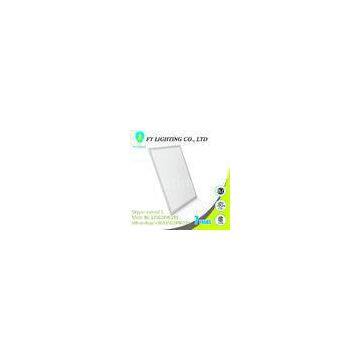

High Luminance Safety Flat Square LED Panel Lights For Home 50watt 120 - 277V

FOB Price

USD $30 - $70/ / Piece

1 Piece(Min.Order)

Supply Ability 0 Piece / Pieces per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	FY Lighitng		Place of Origin	China
Model Number	FY-PL

Product Description

Delivery Time:5-7 working days for sample
Certification:CE ROHS UL CUL DLC CSA

Square LED Panel Light 50watt

preference of FY Lighting:

Ultra thin-only 12mm

PFC>0.9, CRI>80. 90lm/w

5 years warranty

dimmable optional

5. CE RoHS VDE certificate for Eruopean markets, UL CSA DLC for American and canadian markets. , ISO9001:2008 Certified factory

UL CUL CSA DLC CE certifications offer,

UL file number:E467461

CSA file number 252050

Spec. of square led panel light

model	size mm	LEDs	power	volt	color temp.	lumen	PFC	THD	CRI
FY-PL-1×1-09W	300*300	108	9W	120-277V	2700-7000	810±10%	>0.9	<20%	>80
FY-PL-1×1-18W	300*300	108	18W	120-277V	2700-7000	1620±10%	>0.9	<20%	>80

model	size mm	LEDs	power	volt	color temp.	lumen	PFC	THD	CRI
FY-PL-1×4-30W	300*1200	240	30W	120-277V	2700-7000	2700±10%	>0.9	<20%	>80
FY-PL-1×4-40W	300*1200	240	40W	120-277V	2700-7000	3600±10%	>0.9	<20%	>80
FY-PL-1×4-50W	300*1200	240	50W	120-277V	2700-7000	4500±10%	>0.9	<20%	>80

model	size mm	LEDs	power	volt	color temp.	lumen	PFC	THD	CRI
	600*600	240	30W	120-277V	2700-7000	2700±10%	>0.9	<20%	>80
FY-PL-2×2-40W	600*600	240	40W	120-277V	2700-7000	3600±10%	>0.9	<20%	>80
FY-PL-2×2-50W	600*600	240	50W	120-277V	2700-7000	4500±10%	>0.9	<20%	>80

model	size mm	LEDs	power	volt	color temp.	lumen	PFC	THD	CRI
FY-PL-2×4-40W	600*1200	480	40W	120-277V	2700-7000	3600±10%	>0.9	<20%	>80
FY-PL-2×4-50W	600*1200	480	50W	120-277V	2700-7000	4500±10%	>0.9	<20%	>80
FY-PL-2×4-75W	600*1200	480	75W	120-277V	2700-7000	6750±10%	>0.9	<20%	>80

Detaild photos of square Led Panel Light :

Installation of square Led Panel Light:

Step1: Open the cover of junction box, the two small hold of junction box superpose the two bolt of back board, put the two wires through the bigger hold. Please refer the marked positions.(Figure 1)

Step2: Fix screws by screwdriver as picture indicates. (Figure2)

Step3: Connect the DC wire of panel light and power supply, red to red (v+),black to black(v-),by terminal cap, as the picture shows.(Figure 3)

Step4: Balanced suspension installation.(A) Fixed rope(B) Static balance panel light(C) Automatic locking after adjust the ride height.maybe parallel lift linkage (Figure 4)

Step5: Pit mounted. Hanging on the edge of the ceiling(Figure 5)

Step6: Remove appropriate round knock-out(s) and connect conduit to wiring box with proper connector(s).

Step7: AC inputs connect to neutral in L, the l
