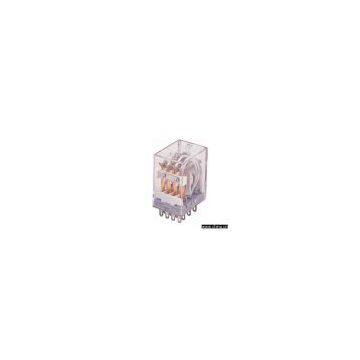

Sell Miniature Power Relay

Model No.:SMET-4 POLE
Product Origin:China
Brand Name:SANYOU
Price Terms:FOB
Payment Terms:L/C at sight, T/T in advance
Certification:UL, C-UL, VDE, CQC
Description:Features: 1) Switching current: 3A (4 poles) 2) Printed circuit board terminal use, soldered plug-in mount 3) Low coil power consumption, high response time 4) High reliability, long life Specifications: 1) Contact arrangement: 4C 2) Contact material: silver alloy 3) Contact resistance (6V 1A): 50mΩ (max.) 4) Rating: nominal switching capacity: 5A 250V AC; resistive load: 5A 28V DC 5) Max. switching voltage: 250VAC / 28VDC 6) Max. switching current: 5A 7) Max. switching power: 1250VA / 140W 8) Expected life (min. ope) mechanical at 120cpm: 1 x 107 9) Expected life (min. ope) electrical at 20cpm: 1 x 105 Coil data: 1) Coil consumption sensitivity: 1.0 -1.3VA, 0.9W 2) Coil voltage: 6 - 110V DC / 6-240V AC Characteristics 1) Operation time: 25msec. (max.) 2) Release time: 25msec. (max.) 3) Initial breakdown voltage between coil and contact: 1500V AC (50 / 60Hz) for 1min. 4) Initial breakdown voltage between open contacts: 1,000V AC (50 / 60Hz) for 1 min. 5) Insulation resistance: 100MΩ (min.) (500V DC) 6) Ambient temperature: -55 ~ 70oC 7) Operating humidity: 45 - 85% RH 8) Shock resistance (functional): 10G (min.) 9) Shock resistance (destructive): 100G (min.) 10) Vibration resistance (functional): 10 - 55Hz at double amplitude of 1.5mm 11) Vibration resistance (destructive): 10 - 55Hz at double amplitude of 1.5mm 12) Unit weight: 40g (approx.) 13) Coil specification (at 20oC): a) Pull-in voltage: DC: 75% (max.), AC: 80% (max.) b) Drop-out voltage: DC: 10% (min.), AC: 30% (min.) Inner packing: 40pcs/plastic tray, 5 plastic trays/inner carton Outer packing: 400pcs (2 inner cartons)/outer carton Carton dimensions: 305 x 256 x 265mm Weight: 13.6kg
