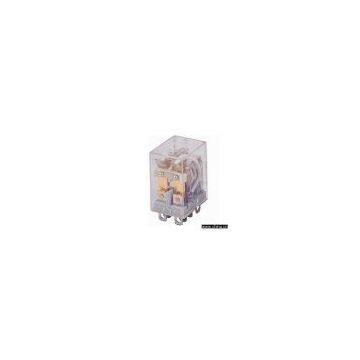

Sell Miniature PC Board Relay
Negotiable
/ Piece
1 Piece(Min.Order)
- 200 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
- TRICONEX 3009 Enhanced Main Processor (UMP) module Improve processor performance
- IS215ACLEH1BB Microprocessor-based controller
- 1394C-SJT22-A Servo controller Dc high precision power supply
- DS200TCQCG1BGF Dual system monitoring module
- IS215UCVEH2AE Used as a VME control card Vertical pin connector
- TRAFOTEK CHK0520 Line output reactor Reduce harmonic interference and improve system stability
Product Details
Place of Origin: | China |
Product Description
Product Origin:China
Brand Name:SANYOU
Price Terms:FOB
Payment Terms:L/C at sight, T/T in advance
Certification:UL, C-UL, VDE,CQC
Description:Features: 1) Switching current: 10A (2 poles type) 2) Printed circuit board terminals or MAP terminals 3) Low coil power consumption, high response time 4) High reliability and long life 5) Flange case available for direct panel mount use Specifications: 1) Contact arrangement: 2A, 2C 2) Contact material: silver alloy 3) Contact resistance (6V 1A): 50MΩ (max.) 4) Rating Nominal switching capacity: 10A 240V AC Resistive load: 10A 24V DC 6) Max. switching voltage: 30V DC / 250V AC 7) Max. switching current: 10A 8) Max. switching power: 2,400VA / 240W 9) Expected life (min. ope) mechanical at 120cpm: 1 x 107 10) Expected life (min. ope) electrical at 20cpm: 1 x 105 Coil data: 1) Coil consumption sensitivity: 1.0 -1.3VA, 0.9W 2) Coil voltage: 6 - 110V DC / 6-240V AC Characteristics 1) Operation time: 25msec. (max.) 2) Release time: 25msec. (max.) 3) Initial breakdown voltage between coil and contact: 1,500V AC (50 / 60Hz) for 1min 4) Initial breakdown voltage between open contacts: 1,000V AC (50 / 60Hz) for 1min 5) Insulation resistance: 100MΩ (min.) (500V DC) 6) Ambient temperature: -40 ~ 70oC 7) Operating humidity: 45 - 85% RH 8) Shock resistance (functional): 10G (min.) 9) Shock resistance (destructive): 100G (min.) 10) Vibration resistance (functional): 10 - 55Hz at double amplitude of 1.5mm 11) Vibration resistance (destructive): 10 - 55Hz at double amplitude of 1.5mm 12) Unit weight: 40g (approx.) 13) Coil specification (at 20oC): a) Pull-in voltage DC: 75% (max.) AC: 80% (max.) b) Drop-out voltage DC: 10% (min.) AC: 30% (min.) Inner packing: 40pcs/plastic tray 5 plastic trays/inner carton Outer packing: 400pcs (2 inner cartons)/outer carton Carton dimensions: 305 x 256 x 265mm Weight: 16.4kg
