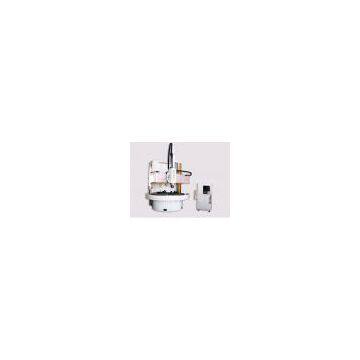

CNC Single Column Vertical Lathe CK5123E/CK5126Epro

Dalian Yimei Machinery Co.,Ltd

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

Place of Origin:

China

Model Number:

CK5123E/CK5126Epro

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Brand Name YM

Place of Origin China

Model Number CK5123E/CK5126Epro

Name	unit	CK5123Epro\CK5126Epro electric tool carrier with four stations
Max. turning diameter of vertical tool post	mm	2300	2600
Table diameter	mm	2000	2250
Max. turning height	mm	1400/1650	1600/2000
Rotate range of table	r/min	0.5-120	0.5-80
Stage number of variable speed		Four gears +stepless	Four gears +stepless
Max. cutting force of vertical tool post	N	30000 square ram/25000 electric tool carrier	30000 square ram/25000 electric tool carrier
Max. torque of table	N.m	40000	48000
Level stroke of vertical tool post	mm	1400	1500
Vertical stroke of vertical tool post	mm	1000/800	100/1300/1600/800 electric tool carrier
Beam stroke	mm	1050/1300	1250/1650
Main motor power	kw	45/55	45/55
Accuracy of positioning	mm	0.03	0.03
Accuracy of repositioning	mm	0.015	0.015
Machining accuracy		IT7	IT7
Overall size(LWH)		*331032454010*	*367533555100*
Weight(about)	T	18/15	26/28
