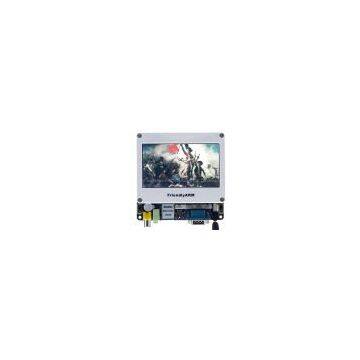

S3C6410 ARM11 Board Mini6410 7"LCD Touch Panel
FriendlyARM Mini 6410 SBC (Single-Board Computer) with 533 MHz Samsung S3C6410 ARM11 processor.
The board measures 11 cm x 11 cm, ideal for learning about ARM systems.
Specification
Dimension: 110 x 110 mm
CPU: 533 MHz Samsung S3C6410A ARM1176JZF-S (max freq. 667 MHz)
RAM: 128 MB DDR RAM, 32 bit Bus
Flash: 128 MB / 256 MB / 1GB NAND Flash
EEPROM: 1024 Byte (I2C)
Ext. Memory: SD-Card socket
Serial Ports: 1x DB9 connector (RS232), total: 4x serial port connectors
IR: Infrared Receiver
USB: 1x USB-A Host, 1x miniUSB Slave-OTG 2.0
Audio Output: 3.5 mm stereo jack
Audio Input: Condenser microphone
Ethernet: RJ-45 10/100M (DM9000)
RTC: Real Time Clock with battery
Beeper: PWM buzzer
Camera: 20 pin Camera interface (2.0 mm)
TV Output: CVBS
LCD Interface
STN Displays:
Monochrome, 4 gray levels, 16 gray levels, 256 colors, 4096 colors
Max: 1024x768
TFT Displays:
Monochrome, 4 gray levels, 16 gray levels, 256 colors, 64k colors, true color
Max: 1024x768
40 pin (2.0 mm) and 41 pin connector for FriendlyARM Displays (4.3" and 7")
Touch Panel: 4 wire resistive
User Inputs: 8x push buttons and 1x A/D pot
User Outputs: 4x LEDs
Expansion: 40 pin System Bus, 30 pin GPIO, 20 pin SDIO (SD, SPI, I2C), 10 pin Buttons (2.0 mm)
Debug: 10 pin JTAG (2.0 mm)
Power: 5V connector, power switch and LED
Power Supply: regulated 5V
OS Support
Windows CE 6
Linux 2.6
Android
Ubuntu
