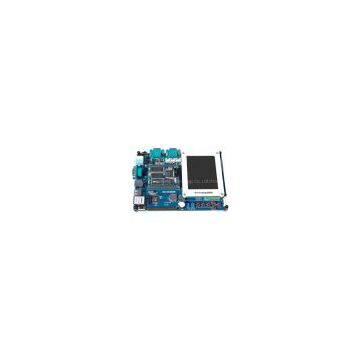

Micro2440 ARM9 Board SDK 3.5" LCD&Touch Panel 128MB
Product description
Eval Kit with Samsung S3C2440A ARM9 microcontroller and 3.5" LCD.
Ideal for learning about ARM systems or integrating into numerous products
Specification: Stamp Module
RoHS Compliant
Dimension: 63 x 52 mm
CPU: 400 MHz Samsung S3C2440A ARM920T (Max freq. 533 MHz)
RAM: 64 MB SDRAM, 32 bit 100 MHz Bus
Flash: 128MB NAND Flash and 2 MB NOR Flash with BIOS
LCD Interface
STN Displays
TFT Displays
Touch Panel: 4 wire resistive
User Outputs: 4x LEDs
Expansion headers (2.0mm)
Debug: 10 pin JTAG (2.0mm)
OS Support: Android, Linux 2.6, Windows CE 5 and 6
Specification: SDK-Board
RoHS Compliant
Dimension: 180 x 130 mm
EEPROM: 1024 Byte 24C08 (I2C)
Ext. Memory: SD-Card socket
Serial Ports: 3x DB9 connector (RS232)
USB: 4x USB-A Host, 1x USB-B Device
Audio Output: 3.5 mm stereo jack
Audio Input: 3.5mm jack (mono)
Ethernet: RJ-45 10/100M (DM9000)
RTC: Real Time Clock with battery
Beeper: PWM buzzer
Camera: 20 pin Camera interface
LCD: Connector for FriendlyARM Displays (3,5" and 7") and VGA Board
Touch Panel: 4 pin
User Inputs: 6x push buttons and 1x A/D pot
Expansion headers (2.0mm)
Power: 5V connector, power switch and LED
Power Supply: regulated 5V
Package contains:
Micro2440 + Micro2440-SDK + 3.5" Display
USB A-B Cable
RJ45 Cable
Serial Cable
LPT - JTAG Adapter
Pen for Touch Panel
DVD
