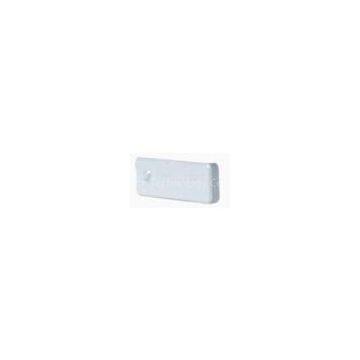

Ceramic 2593mm Metal RFID Tag, 3M Adhesive UHF Metal Tag for Metal Items Management

Ceramic 25×9×3mm Metal RFID Tag, 3M Adhesive UHF Metal Tag for Metal Items Management

Application:

Assets statistics management, inventory management, small equipment and facility management,

Control board management, vehicle management, etc.

Physical Features:

Product Model: RCC6006

Material: Ceramic

Dimensions: 25×9×3mm

Weight: 3.8g

Color: optional

Working Temperature: -40℃～150℃

RFID Features:

Protocol: EPC C1G2 (ISO18000-6C)

Frequency: 860～960MHz

Chip: Alien Higgs 3 (optional)

EPC Memory: 96 bits, maximum 480 bits

User Memory: 512 bits

Read Range: Stationary reader: Over 4m (30dBm)

                     Handheld reader: Over 1.5m (28dBm)

Introduction:

This tag is designed on wave-absorbing material. It solves the problem that tags can not be attached to metal surface(Reading distance even will be father when it is attached to metal surface). At the same time, it can work outside in the hard environment. It complaints with EPC C1G2 (ISO18000-6C), operating frequency is 860～960MHz (It can be used worldwide). Each tag has a unique ID and stores user data.

Other Features:

Environmental: ROHS compliant

Data storage: >10 years

Re-write: 100,000 times

Fixture: 3M adhesive

Customization: Company logo print
