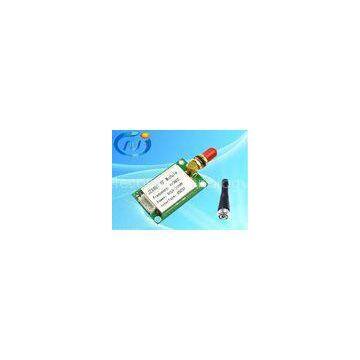

490Mhz RS232 GFSK Rf Transceiver Module Long Range For Wireless Telemetry JZX893
- T/T L/C D/P D/A
- 7 days
You May Like
-
RS232 490Mhz 4000m Long Range Rf Transceiver Module For Wireless Queue System
-
Small 868MHz / 915MHz GFSK ISM RF Module Long Range With CE Certificated
-
1800MHz / 1900MHz GSM / GPRS UHF RFID Module Support SMS / USSD
-
TTL GPRS Wireless Data Transmission Module Radio Frequency Module
-
Industrial GPRS AD Hoc Network Module With Watchdog Chip 1W / 2W
-
High Sensitive Embedded 1W / 2W Lora RF Module Data Transceiver Module
Product Details
| Brand Name | JZX | Place of Origin | China | |
| Model Number | JZX893 |
Product Description
Certification:CE, FCC
1W/2W UHF RFID Module, 490Mhz For Wireless Telemetry JZX893
Product specification:
1. uses GFSK modulation mode, reliable line of sight transmission distance up to 3000m;
2. provides 8 channels;
3. interface / channel rate: 1200/2400/4800/9600/19200/38400bps
4. transceiver, half duplex, sending and receiving data conversionautomatically, as long as the interface
5. Power: Power 1w, receiving current <45mA, transmitting current<1A;
6. Power Supply: DC +4.5 V ~ +5.5 V.
7. Temperature: -25 °C ~ +85 °C;
8. size: 58mm × 38mm × 10 mm (excluding antenna);
9. Standard Antenna: SMA thick whip antenna or a small suction cup.
Optional Antenna:
Warranty(quality):
1.We have specialized technical matintentance team ,
2.1 year free maintentance,lifelong technical technical support for customers
3. Three packs of sevirces,quality,assurance
Applications:
> Smart Card
> Wireless Queue System
> Wireless electronic scale
> Wireless smart terminal PDA
> Intelligent teaching equipment
> Wireless alarm and security system
> Intelligent home automation and lighting control
