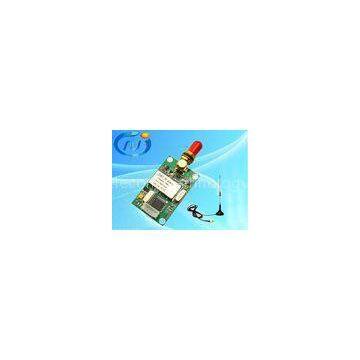

Help CenterUniversal 100MW 915Mhz / 433Mhz Low Power RF Module 44mm27mm8mm
Related Products
-
500mw RS232 / RS485/TTL Long Range RF Transceiver Module 433 Rf ModuleNegotiableMOQ: 1 -
Data Communication GFSK UART / TTL Low Power RF Module For Natural Gas MeterNegotiableMOQ: 1 Kilogram
-
Long Range Wireless RF Data Module , 500MW Data Communication ModuleNegotiableMOQ: 1 Piece
-
TTL 200Mw GFSK Modulation Low Power RF Module / Modem 490MHzNegotiableMOQ: 1 Piece
-
433Mhz / 490Mhz RS232 Lora Low Power RF Module RF Transceiver Module Long RangeNegotiableMOQ: 1 Piece
Certification:CE
Technical specification of JZX871:
|
Modulation: |
GFSK |
|
Transmit Current: |
<100mA |
|
Receive Current: |
<20mA |
|
Sleeping Current |
<1uA |
|
Channel Amount |
16 channel |
|
Working Temperature |
-20+65°C |
|
Antenna Impedance: |
50 |
|
Size: |
44mm×27mm×8mm |
|
Weight |
13g |
Features:
1. Power and receiving sensitivity
a. Transmission power <1W, TX current<100mA, RX current<20mA,
b. Transmission power<10mW, TX current<35mA, RX current<30mA,
High receiving sensitivity: -121dbm.
2. Modulation mode and Frequency
Modulation mode: GFSK, Frequency: 424-448MHZ. Also, 868mhz and 915mhz is possible.
3. Long transmission distance
Within the range of visibility, the reliable distance is >800m.
4. Low power consumption
When transmission power is 1W,The Transmission current<35mA,Receiving current<30mA,sleeping current <1uA.
5. High reliability, small and light
Single chip radio - frequency integrated circuit and single chip MCU are used for lessened peripheral circuits,high reliability,and low failure rate.
6. Watchdog monitor
Watchdog monitors the inner function,it changes the traditional product structure and also improve the reliability of our modules
Our Advantage :
1. 15 years export experience, and more than 10 yeas’ experience of designing and manufacturing RF module.
2. Most professional. All the staff in JZC endeavor to provide professional products and services for you.
3. Monthly Production: we can turn out 100000 units monthly, which are widely distributed in Europe, US,
Australia, Russia, South Korea, South Asia and the Middle East.
4. We have specialized technical team with rich experience in this field. By investing 10 percent of sales
turnover in R&D,every year, we develop one to two new samples every month.
