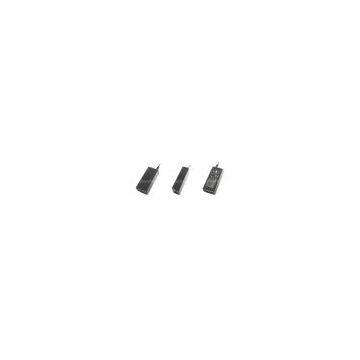

Help CenterLaptop Adapter
US$ 0.1 - 0.1
MOQ: 10000 Pieces
Key Specifications
Get Latest Price
Brand Name:
wanqiu
Place of Origin:
China
Model Number:
WQ-211
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
Brand Name
wanqiu
Place of Origin
China
Model Number
WQ-211
Features:
* 100~240VAC input
* Small size, low weight and high efficiency
* Protection feature: short circuit, overload protection
* Natural air cooling system
* 100% full load burn-in test
* 1year warranty
* Size: 96×45×30mm
Specification
| Model No. | WQ-211 | ||||
| Output | DC output voltage | 12V | 12V | 12V | 24V |
| Output voltage Tolerance | ±1% | ±1% | ±1% | ±1% | |
| Rated output current | 1A | 2A | 3A | 1A | |
| Output current | 0~1A | 0~2A | 0~3A | 0~1A | |
| Output power | 12W | 24W | 36W | 24W | |
| Mvp-p | 120mVp-p | 120mVp-p | 120mVp-p | 200mVp-p | |
| DC voltage adjustable range | ±5% | ±5% | ±5% | ±5% | |
| Start, rise, maintain time | 1000ms, 30ms, 50ms/230VAC. | ||||
| Input | Input voltage | 100~240VAC 47~63Hz | |||
| AC Input current | Max 0.7A | ||||
| Efficiency | ≥80% | ≥80% | ≥80% | ≥85% | |
| Surge current | 40A/230V; Cold start | ||||
| Leakage current | <3.5mA/240VAC | ||||
| Protection Features | Overload protection | 115%~135% of Rated output power start overload protection | |||
| Protection way: hiccup mode, will recovery after removed abnormal load conditions. | |||||
| Over-voltage protection | 115%~135% Cutting output, automatic recovery | ||||
| Over-temperature protection | ≥105℃ Cutting output, automatic recovery | ||||
| Environment | Operating temperature & humidity | -10℃~+60℃;20%~90%RH | |||
| Security | Pressure resistance |
Input and output: 1.5KVAC Input and earth: 1.5KVAC Output and earth: 0.5KVAC |
|||
| Insulation Resistance | Input and output: input and earth, output and earth: 100M Ohms/500VDC | ||||
| Others | Weight/ Package | 0.151kg/100PCS/15.1kg/16kg carton size:43.5*38.5*32cm |
Note:
1. All parameters are tested under the condition of 230V ac Voltage, rated load and 25℃ if no any particular mark.
2. Mvp-P is measured in 20Mhz with wide oscilloscope, and 12inches twisted-pair cable which with 0.1u and 47u capacitance in its end.
3. Tolerance is the sum total of the voltage setting error, voltage regulation and current regulation.
