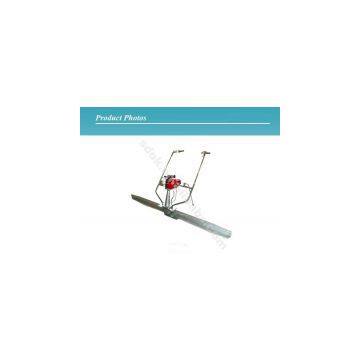

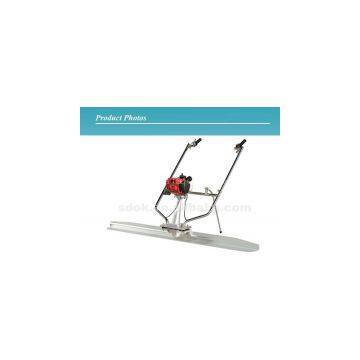

Help Center2015 Stainless Steel OUKE Power Vibratory Floor Leveling Surface Finishing Machine, Vibrating Concrete Screed
Related Products
-
Electric Concrete Surface Finishing Screed Concrete Vibrating Level ScreedUS$ 1500 - 1500MOQ: 1 Piece -
1.8m Concrete Vibration RulerNegotiableMOQ: 1 Piece
-
Gasoline 2m Concrete Vibration RulerNegotiableMOQ: 1 Piece
-
Laser Control Surface Finishing Honda Aluminum Vibratory Screed for SaleUS$ 1500 - 1500MOQ: 1 Piece
-
OK-P11A Hand-push Powerful Concrete Floor ScabblerUS$ 1500 - 1500MOQ: 1 Piece
Description ＆Features ＆ Technical parameters
1. What is the use of the concrete vibration level?
Gasoline 2m concrete vibration ruler can discharge air in concrete, scratch flat concrete ground, and strengthen the concrete density.
The concrete vibration ruler for: cell hardening, hardening of cement pavement, especially suitable for floating roof cement hardening!
2. What are the characteristics of the concrete vibration level?
Direct coupled turbine reducer transmission of power by the vibration of concrete leveling ruler, the vibration of concrete leveling ruler with reduction ratio, high efficiency.
Concrete vibration leveling ruler structure for motor gasoline by triangle belt drive turbine box, so as to drive the wiping machine rotates to erase the effect, the turbine transmission with transmission torque high durable and stable speed advantages of uniform.
3. What is the principle of gasoline vibration feet?
Gasoline vibration rule is the centrifugal force of the engine through the shock absorber connecting shaft, the motive power is transmitted to the eccentric block, an eccentric block to vibration feet do not stop shaking, the concrete leveling, pulping.
4. OUKE vibration foot where the advantages of gasoline?
Our company is imported Honda GX35 type engine. This machine has strong vibration resistance and is easy to start, long continuous working time, the characteristics of fuel-efficient, is currently on the market most suitable for gasoline vibration scale models. When the engine speed is over 4200 rpm, the centrifugal clutch on the gasoline engine will automatically engage to transmit power.. When the engine is in the idle state, the clutch is in the disengaged state, the vibration rule is not in vibration.
5. What are the parts of gasoline vibration level?
Gasoline vibration feet gasoline engine, bar, machine frame, an eccentric block, damping block, shock absorber connecting shaft, bearing, oil seal, drive rod, special transmission rod box, gasoline engine oil cup, commonly used tools.
Transmission rod box: it plays a supporting role for the whole fuselage, and the shock type connecting shaft is a fixed protective effect.. The gasoline vibration gauge because of its vibration, it requires the transmission rod box not only to have a high strength, but also to have a good earthquake resistance.
6. What are the concrete vibration parameters of 2 meters straight?
Weight: 25KG
Dimension (L*W*H):2000*1400*960mm
Type: Air-cooled, 4-cycle, Gasoline
Engine: GX35
Max. Output: 1.2 (1.6) KW (HP)
Max. Speed: 200rpm
Custom: 1-5 meter high quality aluminum alloy scraper
