Weighing Down & Feather Filling Machine

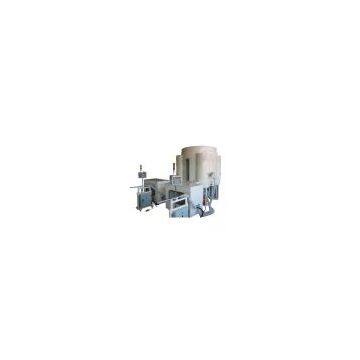

Weighing down & feather filling machine

Item no.: SF-1

Dimension: 7500*2500*3500mm

Voltage: 380v 50Hz 3phase

Power: 11kw

Capacity: according to the filling weight, production material etc.

Weighing error: 1g

Air pressure: 0.5-0.8MPa

Weight: Approx. 800kg

Description:

1. The automatic down and feather filling machine is mainly used to produce jacket, sleeping bag, cushion, pillow, pads and comforters that made by down and feather material by computerized weighing system.

2. Its technical is adopted the vacuum filling function that does not hurt the material and keeps the original elasticity and soft hand feeling.

3. Accuracy weighing results that the tolerance can be only 1gram. It can be adjusted according to the production requirement and choose group error or single piece error from the control panel, so that assured for the production quality and material waste controlling.

4. The whole line can be handled by only 2 operators by very simple operation which saves you a big amount of labor costs.

5. All the materials are closed inside of hoppers which rotating without any dust that avoids affecting the working area. It will advance your company image.

6. Most of the electric key components are adopted the import one, so that the quality is reliable and stable.

7. The whole line operation is controlled by PLC system which is researched and produced according to the highest technology in the world.

8. According to different quantity and quality production requirement the machine control panel can be set up for 100group of programs and each group can be 80sets different weight value for filling options, so that satisfied for filling different parts of the same production.

9. High working capacity that the average weighing time can be 4 to 6 seconds and the filling time can be adjusted flexible.

10. Different requirement of the customer can be considered by our professional engineers to work on our machines to be suitable for your need.

Material hopper: Dia.1800*2500mm                                  1pcs

Weighing system: 800*1000*1200mm                             2pcs

PLC control system and control panel:                              2sets

Material storage: Dia. 600*2500mm                                  1pcs

Air output hopper: Dia. 600*2500mm                                1pcs

Material feeding hopper: 1000*800*800mm                     1pcs

Fan:                                                                                   3pcs

Pipe system:                                                                      1set
