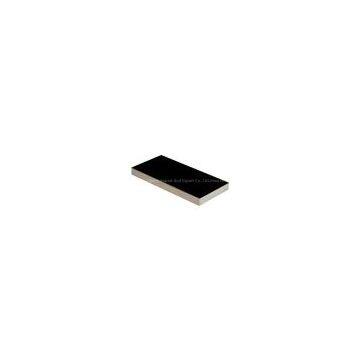

GIGA - film faced plywood board manufacturer
Specification of film faced plywood board manufacturer
1) Size:1220*2440mm,915*1830mm(tolerance: 2mm)
2) Thickness: 12mm,13mm,14mm,15mm,16mm,17mm,18mm(tolerance: 0.2mm)
3) Glue: WBP,MR,Melamine
4) Core: poplar,hardwood
5) Color: brown,black,red
6) Film can print with requested logo
7)Application:highly used in concrete construction,the level moulding board, shearing force wall,bridge dam tunnel and girder moulding board ,form working
8) Board Grade: AAA grade
9) Used Times: More than 10 times
10) Moisture Content: lower than 11%
11) Modulus of rupture:30Mpa
Modulus of Elasticity:6000Mpa
12) Packing
Inner packing: inside pallet is covered with 0.2mm plastic bag
Outer packing: by pallet, wrapped in carton, reinforced with iron belt
13)MOQ:25 Cubic Meters or 1*20 GP
film faced plywood board manufacturer
|
Name: |
Red/Black/Brown Film faced Plywood |
|||
|
Size: |
1220 mm×2440 mm,915*1830mm, or other sizes as client's request |
|||
|
Thickness: |
12mm-18mm |
|||
|
Glue: |
WBP, MR,Melamines |
|||
|
Moisture: |
To be 12% ±2 |
|||
|
Core: |
Poplar |
|||
|
Face: |
Black film,brown film |
|||
|
240g/m2 for black film. |
||||
|
Usage: |
Decoration,Construction |
|||
|
Packing: |
inter packing:0.20mm plastic bag |
|||
|
plywood sheet or carton |
||||
|
then steel strip for strength |
||||
|
Delivery time: |
15 days on receipt of deposit or original L/C |
|||
|
Quantity: |
20’GP 8 Crates/13650~15600KGS/21~24cbm |
|||
|
40’GP 16 Crates/24000kgs/48cbm |
||||
|
40’HQ 18 Crates/26000~28500kgs/50~59bcm |
||||
|
Mini order: |
1X40'GP |
|||
|
Price terms: |
FOB ,CIF ,CFR |
|||
|
Payment terms: |
L/C at sight , T/T 30% as deposit ,balance against copy of B/L. |
|||
|
Supply ability: |
5000 cubic meter / month |
|||
|
Specially service:we accept the ISO CE inspection (pay by customer ) |
||||
|
Feature: |
|
|
|
|
|
1. In boiling water, it can keep glue-sticking and non-deformed for 60 hours at least. |
||||
|
2. Physical mood is better than iron moulds and can satisfy the requirements |
||||
|
constructing mould ,while the iron ones are easy to be deformed and can hardly |
||||
|
recover its smoothness even after repairing . |
|
|
||
|
3. If used abide by the illustrations strictly.it can be reused more than 50 times. |
||||
|
thus reducing the cost greatly and avoiding the disadvantages from |
||||
|
rustily and erosive of iron mould. |
|
|
|
|
|
4. Solves the problems of leaking and rough surface during constructing process |
||||
|
5. Particularly suitable for watering concrete project because it can make |
||||
|
the concrete surface smooth and flat |
|
|
||
|
6. Realizing a higher economic profits |
We specialize in film faced plywood,. They are available in different material, size, grade. Our products are mainly exported to the market in North America, Europe, Asia and Middle East and have gained much good reputation from overseas plywood markets .
Film Faced Plywood ,black,,brown film face/back/core,wbp glue,size1220*2440mm,915*1830mm
Specifications:
1) Moisture content: ≤10%
2) Density: >0.75g/cbm
3) Wearing and tearing value: ≤0.1g/100r
4) Wash the intensity of defying: 40kj/sqm
5) Elastic mould amount: 5,000 - 7,948MPa
6) Intensity of the quiet song: 24 - 75.8MPa
7) Warping degree: ±1%
8) Thickness public errand: ±0.2mm
9) Film faced plywood, coated with black film
10) Film faced plywood, coated with brown film
11) Core: poplar
12) Glue: WBP, melamine
13) Brown: 120gsm, for concrete shuttering, transport industry
14) Black: 240gsm, for concrete shuttering, building boards, transport
industry, flooring
15) Sizes available:
a) 1,200mm x 2,400mm
b) 915*1830mm
16) Thickness:12,13, 14, 15,16,17, 18mm
Features:
1) Overlaying: a smooth phenolic film, which is hot-pressed onto the surface,
is used as an overlay. The film is composed of a base paper and phenolic
resin that is impregnated into the base paper. Film weights 120gsm,
220gsm. Overlaying with higher resistance to abrasion and multi-layer
overlaying are also possible.
2) Edges sealing: edges of the panels are matched with the face against
absorption of moisture. Other colors are available and the edges may
be unsealed at customers' request
3) Gluing classes: basic plywood is bonded with a phenol resin adhesive
resistant to weather, boiling water and meets the requirements
Packing:
1. Inner packing:
Inside pallet wrapped with a 0.20mm plastic bag
2. Outer packing:
Pallets are covered with plywood and then PVC/steel tape for strength
part of Cooperation Projects
Certificate and reward
