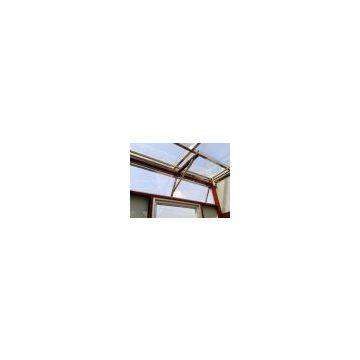

Ahouse TC Automatic Window Operator System/Window Opener
Feature
1) DC24V Low voltage motor for maximum safety.
2) Piston stroke can be manually adjusted.
3) Build-in over current safety cut-off feature.
4) Suitable for all dimensions of window.
5) Build-in control system, easy installation.
6) Can be controlled by wall switch or remote control, control group by one remote control.
7) Various piston stroke to be selected.
8) Complete supporting bracket kit, suitable for all window type.
9) Operating temperature: -35oC to +65oC
Suitable for halls, stadium, Factory, Sun room.
Optional Parts
Window/Light /Rain Detector
Smoke Detector
Temperature Detector
Push Button
Synchronizer
|
Model |
TC3 |
TC2 |
|
Supply Voltage |
AC110v~240v |
|
|
Operating Voltage |
DC24v |
|
|
Safety Dectection |
Over Current Dectection |
|
|
Optional Device |
Heat Detector/Smoke Detector/Push Button/Synchronizer |
|
|
Controller |
Build-in Controller |
|
|
IP Rating |
IP66 |
|
|
Max.Piston Stroke |
300mm |
200mm |
|
Max.Length of Motor |
900mm |
720mm |
|
Max. Force |
1000N |
800N |
|
Frame Housing |
Stainless Steel/Aluminum Alloy |
|
|
Driving Method |
Screw Driven Piston Type |
|
|
Opening Degree |
0~65 Degree |
|
|
Stroke Speed |
30mm/s |
|
|
Temperature |
-25°to + 50° |
