Graphite CNC Gasket Cutter For Fix Turbocharger Blade Cutting Solution

Name: Graphite CNC Gasket Cutter For Fix Turbocharger Blade Cutting Solution
Brand: AOKE
SKU: 150322276
Availability: InStock

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

AOKE

Place of Origin:

China

Model Number:

DCZ50

China Sample Maker Cutting Machine

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Brand Name AOKE

Place of Origin China

Model Number DCZ50

Delivery Time:20 Working Days
Certification:CE, SGS, ISO

Graphite CNC Gasket Cutter Make Gasket For Fix Turbocharger Blade Cutting Solution

Tools:

Four cutting tool, oscillating knife, drag knife, creasing wheel, drawing pen.

Cutting Material:

Non-asbestos Fibre, flexible graphite, PTFE, rubber, cork, etc all non-metal gasket material

Capacity:

Less than 1000 pcs small production, instead of hand cutting or die cutting

Advantage:

Cut hard gasket in any shape and size, the precision is 0.1mm, can ensure the perfect cutting effect of gasket.

Gasket Cutting Machine

The Tool Head And Cutting Sample

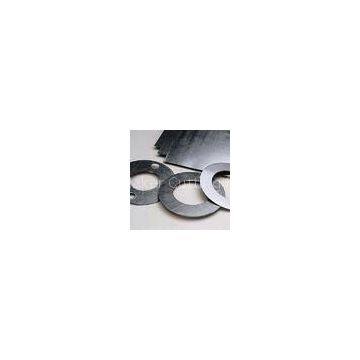

Application Of Graphite Gasket

Graphite Gasket CNC Cutter Make Gasket For Fix Turbocharger Blade Cutting Solution Parameter:

TYPE	DCZ502516	DCZ501713	DCZ501310
Effective cutting area	2500*1600mm	1700*1300mm	1300*1000mm
Configuration	Oscillating blade. drag knife pen. creasing wheel.
Function	Cut graphite, rubber, non-asbestos, cork etc gasket, make sample and do short run production
Max speed	1000mm/s
Smallest cutting diameter	2m
Maximum cutting thickness	15mm
Control line and driver	Servo
Precision	≤0.1mm
vacuum	5.5kw
Data form	HPGL
Voltage	220v±10% 50Hz
Data port	PCI port
Data Transmission speed	10MB/S
Using dimension(mm)	31523801150	237022001150	196018901150
Input cushion area	32MB
