Home > Electrical & Electronics > Power Supply & Distribution > Power Distribution Cabinet & Box > LKV314 1x4 HDMI Splitter-HDMI 1.3
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
lenkeng
Place of Origin:
China
Model Number:
lkv314
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
LKV312 1x2 (2 Port) HDMI Splitter HDMI 1.3bNegotiableMOQ: 1 Piece -
LKV318 1x8 HDMI Splitter - HDMI 1.3NegotiableMOQ: 1 Piece
-
FLY7503M-BNC to VGA ConverterNegotiableMOQ: 1 Piece
-
FLY7503W-BNC BNC to VGA ConverterNegotiableMOQ: 1 Piece
-
FLY7503M RCA Composite & S-Video to VGA ConverterNegotiableMOQ: 1 Piece
Brand Name
lenkeng
Place of Origin
China
Model Number
lkv314

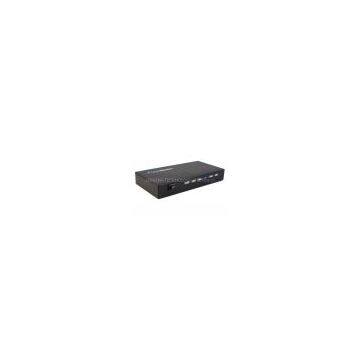

LKV314 1x4 HDMI splitter distributes 1 HDMI source to 4 HDMI displays simultaneously. It offers HD video solution for super market; shopping Mall; HDTV, STB, DVD and projector factory; data control center; information distribution; conference room presentation; education and training, corporation show room, luxurious house, etc.
|
Input Video Signal
|
0.5 -1.0 volts p-p
|
|
Input DDC Signal
|
5 volts p-p (TTL)
|
|
Max Single Link Range
|
1920X1080
|
|
HDMI Resolutions
|
480i/576i/480p/576p/720p/1080i/1080P
|
|
DVI Resolutions
|
480p/576i/576p/720p/1080i/1080p
|
|
HD Audio format
|
LPCM,Dolby-AC3, DTS7.1, DSD/Dolby TrueHD/DTS-HD master Audio
|
|
HD Video Format
|
Deep Color
|
|
HDMI Version
|
HDMI 1.3
|
|
Bandwidth
|
Up to 225MHz
|
|
EIDI Duration
|
6 seconds
|
|
Power supply
|
DC 5V@1A
|

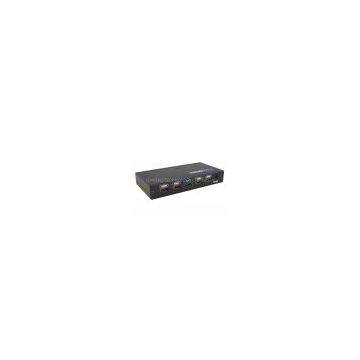

1. Power switch; 2. Power LED,
3. 5. HDMI Output LED; 4. HDMI Input LED;
6. 8. HDMI Output; 7. HDMI Input;
9. Power Supply
|
Item
|
Qty
|
Pic
|
|
Power supply
|
1 pcs
|
|
|
User manual
|
1 pcs
|
|
|
Package Box
|
1 pcs
|
|
Package Info:
| Weight (kg) | Dimension (LxWxH cm) | |
| Product | 0.38 | 16X8.2X2.6 |
| Gift Box(1pcs with accessories and gift box) | 0.62 | 30.5X14.5X7.5 |
1). The splitter does not appear to be functioning.
Firstly, check if the LED lights, the power supply is connected and the power switch is turned on. Secondly, make sure all cables are well connected, and are in good condition. Thirdly, make sure the length of the cables is within the MAX supported length of this splitter. Lastly, please try to connect the input device to the display directly to see if it display normally.
2). The LED does not light.
Make sure you use the accessory power supply of the splitter. Power supply connected with voltage higher than 5V may damage the splitter.
3) If the MAX. resolutions of the four displays are not the same, what resolution will be output?
The splitter will automatically detect the MAX. supported resolution of each eight displays and output the lowest one.
