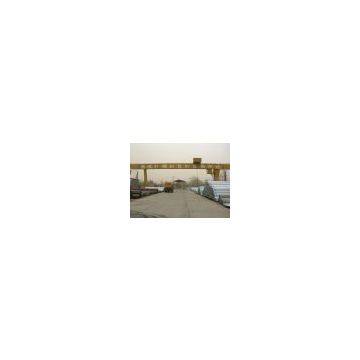

L Type Single-girder Gantry Crane
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Place of Origin:
China
Model Number:
MDG(L)
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
Place of Origin
China
Model Number
MDG(L)
1. Introduction
MDG(L) type Main single-girder gantry crane,which has the advantages of Light-weight, saving materials, low cost, small windward acreage , is widely used in factories, enterprises,stations,ports ,etc. Capacity 5t,10t,16/3.2t,20/5t,32/5t and50/10t,span :18-35m.
It consists of four main parts, bridge structure, the traveling mechanism, the trolley and the electric system.The bridge is welded structure of boxed-type girder, individual drives are adopted for traveling mechanism on each end beam of the crane.
Open vision for cab, flexible operating, comfortable working conditions, cooling fan, air cooler, air conditioner are all available according to the requirements
Safety feature:
overloaded limiters, Top quality long time bearing polyurethane materials buffer, Crane traveling limit switch, Voltage lower protection function, Emergency stop system, current overload protection system and so on!
2.Technical parameter
|
Lifting capacity
|
t
|
5
|
10
|
||||||||
|
Span
|
m
|
18
|
22
|
26
|
30
|
35
|
18
|
22
|
26
|
30
|
35
|
|
Lifting height
|
m
|
10
|
11
|
10/10.5
|
11/11.5
|
||||||
|
Work system
|
|
A5
|
|||||||||
|
Speed
|
Main lifting
|
m/min
|
9.0
|
||||||||
|
Aux lifting
|
|
9.0
|
|||||||||
|
Trolley traveling
|
35
|
||||||||||
|
Crane traveling
|
30
|
||||||||||
|
Total power
|
KW
|
22.8
|
25.8
|
36.8
|
39.8
|
||||||
|
Max wheel load
|
KN
|
160
|
166
|
185
|
231
|
233
|
225
|
256
|
239
|
286
|
298
|
|
Recommended rail
|
Kg/m
|
43 kg/m
|
|||||||||
|
Power supply
|
380V, 50Hz, 3P( we can design cranes according to client's local power source)
|
