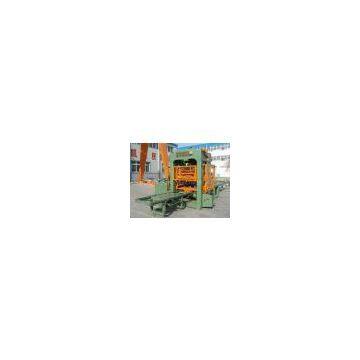

solid brick making machine FZQT6-18

Strength Makes The Glory

BAODING WHUA RES FOUNDER Machinery CO., LTD, is located in No.981, beierhuan, Baoding City (west to the Baoding Power Valley) and a staff of more than 300, which has a mold factory,a training center and ancillary brick factories and so on.It has developed to be a top enterprise with a capacity of 1000 sets in this field within 14 years.Its production line exports to more than 13 countries throughout East Asia,Mid-Asia,Middle East,East Europe,Africa,and becomes the leading one in china brick machine industry.

Reasonable form of vibration

Unique synchronous vertical technology make sure that the concrete can liquefy within 2-3 seconds,and it also can ensure the density and intensity of the products, and the high efficiency of producing.

The following is details for FZQT6-18:

Size: 3600*2400*2900

Total weight: 13500kg

Power: 32kw

Form of Vibration: Pressure Molding Vibration

Frequency: 4500 times/minute

Splint Size: 870*685*38mm

Shaping cycle: 13-18 seconds/time

Maximum rated force: 120KN

Type Specification Number Output per hour

Block 390*190*190mm 6 piece 1200

Concrete brick 240*115*53mm 30 piece 7200

Porous brick 240*115* 90mm 15 piece 3000

Ground brick 200* 100*80mm 21 piece 4200
