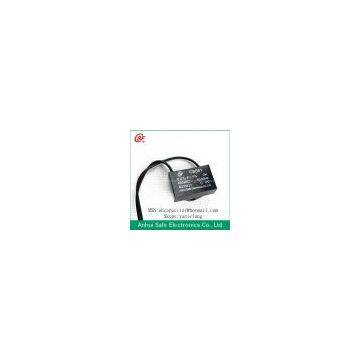

Electric Fan Motor Capacitor CBB61

Electric Fan Motor Capacitor CBB61 This capacitor uses polyprpylene film and reticulation safety film (thickened by zinc and aluminum) as a medium, encapsulated by burnt-prevent epoxy resin and square ABS plastic. It is small, reliable and safe, also has stable electric and long working life.Fan capacitor CBB61 widely used as the start-up and running capacitor that is special for electric appliances such as electric fan,ventilators and exhaust fanners. Standard:IEC 60252-1:2001 Technical features: Climate type:40/70/21 or 40/85/21 Capacitance tolerance:± 5% I.R:≥3000S(MΩ@µF) Dielectric dissipation factor:tgδ≤0.002 (50Hz~100Hz) Application requirements: Altitude:≤2000m Residual voltage in application: less than 10% of rated voltage. Allowed maximum voltage: less than 1.1 times of rated voltage Permissible maximum current: less than 1.3 times of rated current. Dimensions & specifications (mm) Rated voltage:200VAC,250VAC,370VAC,400VAC,440VAC,450VAC,500VAC Nominal capacitance:1uf,1.2uf,1.5uf,2uf,2.5uf,3uf,3.5uf,4uf,4.5uf, 5uf,6uf,6.5uf,7uf,8uf,10uf,12uf,14uf...... Technical Specifications Standard GB3667-1997 Climate type 40/70/21 Capacitance tolerance +/-5% I.R.: ≥3000S@µF I.R Dielectric dissipation factor tgδ≤0.002 (50Hz~100Hz) Altitude ≤2000m Residual voltage in application less than 10% of rated voltage. Allowed maximum voltage less than 1.1 times of rated voltage Permissible maximum current less than 1.3 times of rated current.
