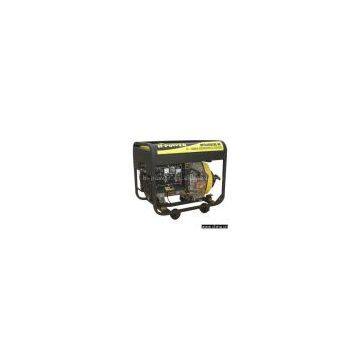

Diesel Generator & Welder

Model: HP5500CX-W / HP5500CXE-WRated frequency (Hz): 50/60Rated power (kW): 2.4/2.8Rated voltage (V): 230/240-120Rated current (A): 12.2/11.7-23.3No. of phase: singlePower factor (cosφ): 1.0Welding voltage at zero load (DC) (V): 60-65Rated welding current DC (A): 160Welding voltage (DC) (V): 25-30Welding load continuous ratio: 60%Welding current adjustment range (A): 50-180Electrode (φ) (mm): 1.6-4.0Rated speed (r/min): 3,000 / 3,600Excitation mode: self-excitation and constant voltage (AVR)Recifying mode: IGBT + three-phase rectifying bridge (PWM)Insulation grade: FPole number: 2Engine model: HP186FA / HP186FAEEngine type: single-cylinder, vertical, four-stroke, air-cooledDisplacement (ml): 418Rated power (kW/r/min): 6.3/3,000, 6.8/3,600Fuel type: 0# (summer), -10# (winter), -35# (chill cold) light dieselLube oil brand: SAE10W30 (above CC grade)Fuel consumption (g/kW.h): 340Fuel tank capacity (L): 16Continuous running time (hr): 10Overall dimension (mm) (L x W x H): 720 x 480 x 645Dry weight (kg): CX-W: 102 / CXE-W: 108Starting system: CX-W: recoil starter / CXE-W: electric starterNoise level (at rated load): dB(A)/7m: 7 producing area:China payment:T/T, L/C at sight supplying capacity:100pcs/month
