Micro Mobile Vehicle Gsm Gps Tracker Car Location Tracking Device
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
- Discrete Traics (Isolated) BTA41-200 BTA41-400 BTA41-600 BTA41-800 BTA41-1000 BTA41-1200
- Three-terminal positive voltage regulator 78L12 transistors
- Bipolar Transistors TO-92 BC546 BC547 BC548 (NPN)
- Bipolar Transistors 40V D882 SOT89
- Bipolar Transistors 60V 200mA 2N3904
- Bipolar Transistors 40V 200mA 2N3906
Product Details
Brand Name: | Noran | Place of Origin: | China | Model Number: | NR026 |
Product Description

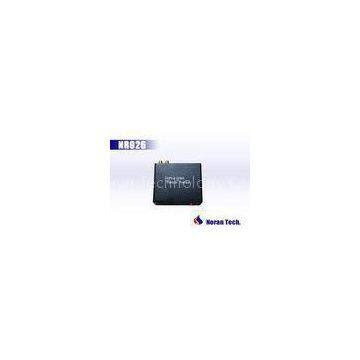

Micro Mobile Vehicle Gsm Gps Tracker Car Location Tracking Device
Defaults Main features:
1. Real time uploads location information via time/distance interval
2. Real-time Positioning & Tracking
3. SOS emergency Alert & Power-cut Alert
4. Audio Monitoring(listen-in)
5. Geo-fence Alert & Over Speed Alert
6. Fuel Monitoring
7. Remote Stop Engine
8. Remote cut Fuel
9. Special Vehicle Monitoring (dump trucks pouring, mixers rotating, etc.)
10. Car Door Open/Closed, Air-conditioner ON/OFF Detection
11. Check Light status
12. GPS & LBS(location based service) tracking
Optional features:
1. Add flash memory
2. Add temperature sensor
3. ACC ON/OFF send SMS message
4. Support TCP/UDP protocol
5. Report position by angle change
6. Support sleep mode
7. Support customized firmware
8. Support vibration sensor
Specifications:
Dimension |
75*65*30mm |
Weight |
430g |
Working Voltage |
DC:6.3~40V |
Input Fuse |
5A |
Working Temperature |
100mA |
Operating Temperature |
-40~85°C |
Humidity |
10% to 90% |
CPU |
TI:MSP430F5419(100MHz) |
GSM Module |
GSM Module:SIM900 Band:850/900/1800/1900MHz, Tally with: GSM phase 2/2+ -Class 4 (2W @ 850/900MHz) -Class 1 (1W @ 1800/1900MHz) Max RF Output: 33.0dBm±2dBm Dynamic Input Range: -15 ~ -102dBm Receiving delicacy: Class RBER≤2%(-102dBm) Frequency Stability: > 2.5ppm Max Frequency Deviation: ±0.1ppm RMS Deviation: ≤5deg |
GPS Module |
GPS chip set: SiRF Star III Frequency: L1, 1575.42 MHz Number of Channel: 20 Sensitivity: To-159Bm Tracking, Superior Urban Canyon Performance Re-acquisition: 0.1 sec, average Hot boot: 2 sec., average Warm boot: 38 sec., average Cold boot: 44 sec., average Altitude limit: 18000 m Velocity limit: 515 m/s |
Input I/O |
1 Output port (Car engine control) 1 Port use to check Ignition status (ACC status) 1 Port use to check Door status 2 ports use to SOS 1 Port use to check light status 1 Port use to cut electricity 1 Port use to check temperature 1 Port use to check AC status 1 Port use to cut Fuel 1 A/D Input port( Fuel monitoring) 1 Port shock alarm 3 Extend ports ( Input/Output control by software) |
Microphone |
3.5mm Single track |
Earphone |
3.5mm |
Current |
Not working Current 16mA working Current:60~150mA Current of opening infrared of Camera at night :100~200mA Charging current: Max<500mA |
Battery |
Lithium battery :400mA( working time is about 3.5 hours) |
Accessories |
Device, Connecting cable ,GPS antenna ,GSM antenna, Engine controller, SOS button, Microphone, manual |
Main features:
1. Positioning and tracking:
through the online positioning platform or the cell phone to locate at any time, and get the working status. You can choose the positioning Platform by yourself
2. Over Speed Alert:
When the target moves exceeding a preset speed the unit will send an SMS+Geo-info to the
authorized numbers
3. Geo-Fence Mode:
Set up a geo-fence for the unit to restrict its movements within a district.
The unit will send the message to the authorized numbers when it breaches the district
4. Auto track:
Auto track by SMS or online positioning platform; Mileage statistics; ACC checking
5. Real time Track by Time/Distance Interval:
Auto track by SMS or online positioning platform; Mileage statistics; ACC checking
6. Remote Self Failure Analysis:
Any error happens on the tracker, it can analysis itself and re
