Product Details
Brand Name | JOYNER | Place of Origin | China | |
Model Number | 250DI |
Product Description
Certification:EEC

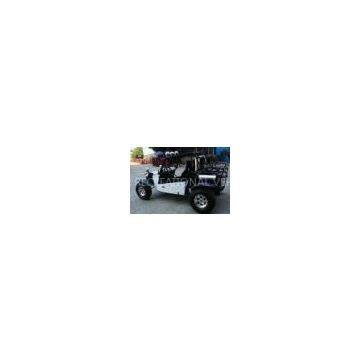

Chery SQRB2G06 Engine, Manual 4-speed-hydraulic Transmission Off Road Go Karts PYT600-EEC
This year our company launched this new model, it satisfy the E-mark standard. This model has a powerful and stable 600cc water-cooled engine. It use manual 4-speed-hydraulic transmission. Its front and rear suspension is independent, double swing arm. This model use hydraulic four wheel brake disc, so it has more powerful braking ability. Also the luxurious aluminum rim, wide luxurious seat will make you feel comfortable during a long drive. And we provide various option parts e.g. roof rack, spotlight, simple windscreen, back view mirror ,etc. Considering different road condition, it also has off road tire, road tire to choose.
Specifications:
spec | PYT600-EEC |
Length*width*heigth | 2880x1570x1600(mm) |
net weight(kg) | 442 |
carrying capacity(kg) | 200 |
wheelbase(mm) | 2050 |
front-wheel gauge(mm) | 1300 |
rear-wheel gauge(mm) | 1300 |
turning circle diameter(m) | ≤12 |
ground clearance(mm) | 280 |
fuel tank(L) | 25 |
top speed(km/h) | 70 |
front suspension | independent,double swing arm |
rear suspension | independent,double swing arm |
front,rear brake | hydraulic four wheel disc |
tire |
25x8-12 (front) 25x11-12 (rear) |
transmission | manual 4-speed-hydraulic clutch |
drive systerm | 2 wheel rear drive transaxle |
engine |
Chery SQRB2G06 |
engine type | In-line three cylinder,12-valve DOHC,water-cooled |
bore X stroke | 72x72 |
displacement | 586 |
compressure ratio | 9.8:1 |
carburetor |
(EFI) electronic fuel injection |
ignition | ECU |
rated power | 26KW/5500rpm |
max torque | 52N.m/3500rpm |
color | red,white,yellow,blue,black,army green |
option parts | spotlight,backview mirror,roof rack,canvas roof,winch,side bumper,shock cover,entire vehicle cover,Half shaft protective plate |
tire choise | offroad tire, road tire |
packing size | 2995x1150x850(mm) |
qty/container | 18unit/40HQ |
