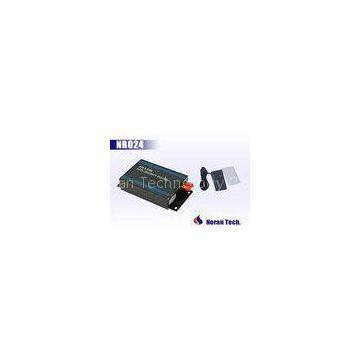

Motorcycle Global RFID GSM GPS Tracker With Gprs Connection And Camera
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Anti Theft Mobile RFID GPS Tracker Web Based With Car Alarm System
-
Realtime Mini Global Gsm GPS Tracker With Gprs Connection / Camera And RFID
-
Cellphone SMS Car Vehicle Gps Tracker Location with Remote Monitoring
-
Portable Wireless Vehicle Gps Tracker Fleet Management With Microphone
-
Personal Portable Mini GPS Tracker Free Online Real Time GPS Tracking Device
-
Realtime Location GPS Tracker Anti-Theft Vehicle Gps Tracking Device Fuel Monitoring
Product Details
Brand Name | Noran | Place of Origin | China | |
Model Number | NR024R |
Product Description
Motorcycle Global RFID GSM GPS Tracker With Gprs Connection And Camera
Noran gps tracker main Features:
1. Real time uploads location information via time/distance interval
2. Image transmit
3. Real-time Positioning & Tracking
4. SOS emergency Alert & Power-cut Alert
5. RFID
6. Geo-fence Alert & Over Speed Alert
7. Audio Monitoring(listen-in)
8. Remote Stop Engine
9. Special Vehicle Monitoring (dump trucks pouring, mixers rotating, etc.)
10. Fuel Monitoring
11. GPS & LBS(location based service) tracking
12. Car Door Open/Closed, Air-conditioner ON/OFF Detection
Noran gps tracker optional funcations:
1. Add flash memory
2. Support vibration sensor
3. Add buzzer
4. Support TCP/UDP protocol
5. Support fuel anti-theft alert
6. Support customized firmware
7. Support fuel theft early sound/light warning
8. Support 2 cameras at most
9. Support RFID Reader
10. Support 2 fuel sensors at most
Specifications:
Size |
137*78*29mm |
Working Voltage |
DC:6.3~40V |
Input Fuse |
5A |
Working Temperature |
-40~85°C |
Humidity |
10% to 90% |
CPU |
TI:MSP430F5419(100MHz) |
GSM Module: |
Tri-mode:850/900/1800/1900MHz Tally with: GSM phase 2/2+ -Class 4 (2W @ 850/900MHz) -Class 1 (1W @ 1800/1900MHz) Max RF Output: 33.0dBm±2dBm Dynamic Input Range: -15 ~ -102dBm Receiving delicacy: Class RBER≤2%(-102dBm) Frequency Stability: > 2.5ppm Max Frequency Deviation: ±0.1ppm RMS Deviation: ≤5deg |
GPS Module |
GPS chip set: SiRF Star III Frequency: L1, 1575.42 MHz Number of Channel: 20 Reacquisition: 0.1 sec, average Hot boot: 2 sec., average Warm boot: 38 sec., average Cold boot: 44 sec., average Altitude limit: 18000 m Velocity limit: 515 m/s |
Input I/O |
3 |
RS232 |
2 |
Microphone |
Inside Mic without phone |
earphone |
No |
Current |
Not working Current 16mA working Current:60~150mA Current of opening infrared of Camera at night :100~200mA Charging current: Max<500mA |
Battery |
Lithium battery :400~800mA( working time is about 3.5~8 hours) |
Accessories |
Device, Connecting cable ,GPS antenna ,GSM antenna, Relay, Camera |
Special technical service
1.All of our devices have two years warranty .
2.Help you setup your own GPS tracking system for free
3.Free server service period: 12-month
4.We accept OEM /ODM and customised orders.(logo, functions, language)
Main features:
1. Positioning and tracking:
through the online positioning platform or the cell phone to locate at any time,
and get the working status. You can choose the positioning Platform by yourself
2. Over Speed Alert:
When the target moves exceeding a preset speed the unit will send an SMS+
Geo info to the authorized numbers
3. Geo-Fence Mode:
Set up a geo fence for the unit to restrict its movements within a district.
The unit will send the message to the authorized numbers when it breaches the district
4. Auto track:
Auto track by SMS or online positioning platform; Mileage statistics; ACC checking
5. Real time Track by Time/Distance Interval:
Auto track by SMS or online positioning platform; Mileage statistics; ACC checking
6. Remote Self Failure Analysis:
Any error happens on the tracker, it can analysis itself and restart.
7. Power cut alert:
When tracker is cut off from the power, the tracker sends alert SMS to user
8. Remote controlling oil and circuit:
You can Cut off or turn on the oil & circuit remotely via SMS or Online whenever you want
9. Fuel Monitoring:
Remote monitoring vehicle fuel (oil, oil spills, oil s
