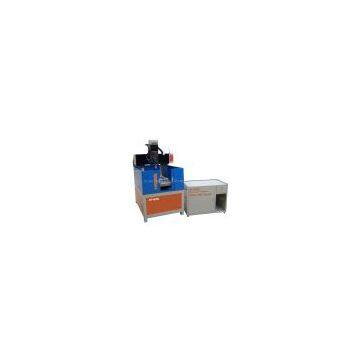

JK-4050 Metal Engraving Machine

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Jingke		Place of Origin	China
Model Number	JK-4050

JK-4050 Metal Engraving Machine/cnc router:

Machine body	whole cast iron
Work dimensions	360×400mm
Body dimensions	1100×1500×1500mm
X/Y/Z movemen	ball screw/Germany
Guide	Linear square rail/Taiwan
Z-axis working area	200mm
Max feeding height	100mm or bigger
Cut thickness of material	30mm
Max.speed	8000mm/min
Working speed	0-6000mm/min
Mechanical precision	0.01mm
Software	Type3,Artcut,Artcam software
Working voltage	AC 220V/50-60Hz,2 phase
Spindle	3KW variable speed,water-cooled
Drive type	stepper motor
Spindle speed	0-24,000rpm
Blade diameter	1-6mm
Control system	DSP0501
Command	HPGL.G code,u00,mmg,plt
N.W.	550KG
G.W.	600KG.
Packing size(wooden crate)	1.222.371.65m
