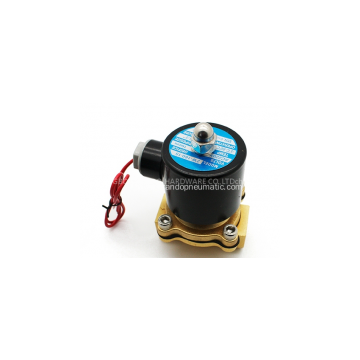

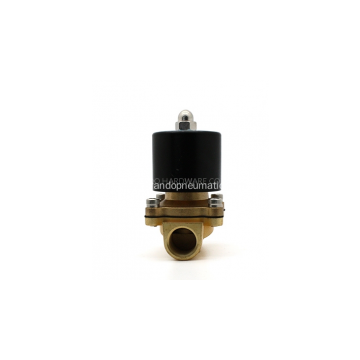

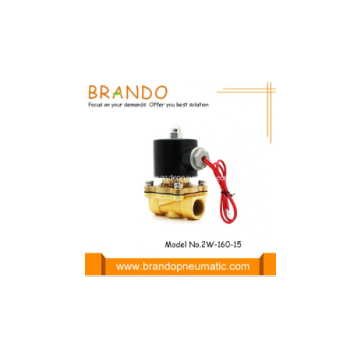

Irrigation System Sprinkler Brass Solenoid Valve

1. General description of Solenoid Valve 2W160-15

A sprinkler system has 2 main types of valves which are; shut off valves and sprinkler valves. Shut off valves are used to temporarily turn off water throughout the entire sprinkler system or sections of the sprinkler system. Sprinkler valves in a sprinkler system are generally used to deliver pressured water to the sprinkler heads throughout the system. Valves in a sprinkler system are also known to be called automatic control valves.

2. Detailed description of specifications

2.1: Two position two way solenoid valve

2.2: Direct drive type

2.3: Aperture of flow rate is 16mm

2.4: Joint pipe bore is 1/2"

2.5: All voltage is available, such as DC12V; DC24V; AC24V 50/60HZ; AC36V 50/60HZ; AC110V 50/60HZ; AC220V 50/60HZ; AC380V 50/60HZ

2.6: Wire forming could be joint connector, blast-proof coil, or water-proof coil

2.7: Working medium: air, water, oil, gas

2.8: CV value is 4.8

2.9: Working pressure from 0 to 7 bar

2.10: Maximum pressure resistance is 10.5 bar

2.11: Operating temperature range from -5 to 80 degree centigrade

2.11: Voltage tolerance: 10%

2.12: Material of valve body is brass

2.13: Seal material could be NBR, EPDM, VITON or others
