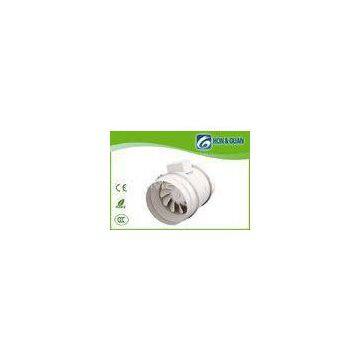

Industrial 8 Inline Duct Fan installation exhaust CE CCC SAA

Delivery Time:10~15 working days
Certification:CE CCC SAA

Industrial  8  Inline Duct Fan installation exhaust CE CCC SAA

Features:

The frame is made of metal. The impeller is made of ABS, designed by hydromechanics to reach the optimal air and pressure. Fan with a timer function 0~30 minutes adjustable. Can be also designed with temperature sensors and humidity sensors, more of user-friendly features design. Double speed motor inside, japanese brand NMB ball bearing, long working life upt to 50,000 hours. IP44 protection class, waterproof and dustproof more effective. Operating temperature range: -20°C ~ 60°C

Specification:

Model	Double speed	Voltage/ Frequency	Current	Power	Speed	Weight	Airflow	Air pressure	Noise
(Amps)	(W)	(RPM)	(Kg)	(m³/h)	(Pa)	(dB)
HF-200P	High	230V/50Hz	0.57	128	2450	4.9	840	352	63
Low	230V/50Hz	0.52	123	1950	690	274	55
High	115V/60Hz	1.41	162	2450	840	352	63
Low	115V/60Hz	1.28	146	1950	690	274	55

Dimensions drawing:

                                                                                                                                              Unit: mm

Performance Curve:

                                                                                                                                         HS: High speed

                                                                                                                                         LS: Low speed

Application:

HF Mixed flow inline duct fan can be used for exhaust and supply ventilatoin systems that require high pressure, powerful airflow and low noise levels. With a range of sizes that include 100, 125, 150 and 200mm, HF fan can be used with rigid and flexible ducting. The HF mixed flow inline duct fan are the ideal solution for air exhaust systems for rooms with high humidity such as bathrooms and kitchens, as well as ventilation for apartments, houses, shops, cafes, restaurants, cinemas etc.

Mounting:

The fan can be mounted in line or at either end of the duct run and at any angle, horizontally or vertically. All fans can be mounted in parallel to increase the volume of air or in series to increase the pressure. The casing is fitted with a mounting plate. The mounting box can be rotated to be installed in any position for easy installation and connection.
