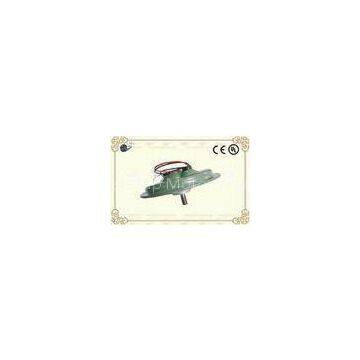

Small 18.3V 50W Brush DC Pancake Printed Circuit Motor For Mobility Equipment

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	SPEED UP,DOUYOU		Place of Origin	China
Model Number	120SN01-D2

Product Description

Delivery Time:15working days
Certification:CE、UL

18.3V 50W Brush DC Pancake Printed Circuit Motor

Quick Detail:

Thin plate type printed armature winding motor Printed winding DC motor with small axial size Power to volume ratio Wide speed range High linearity Small moment of inertia Large output torque Smooth operation of the advantages.

Description:

Micro motor armature winding structure is a special. Printed motor for short. Coil winding armature winding it with the traditional motor is different, in the complex of copper foil board formed by printing with the corrosion, electrochemical deposition, electrochemical transfer method.

Technical performance:

Flat armature technic

Ultra slim profile

Long service life of brush

Low moment of inertia

More uniform torque

Have higher overload capacity at moment

Direction change of no spare

Speedy response

Low inductance

Specifications:

Product types:	Printed DC motor
Model:	120SN01-D2
Rated power:	50W
Rated voltage:	18.3V
Unloaded speed:	3300rpm
Custom made:	Yes
Diameter:	151mm
Thickness:	33.9mm

Design Options:

Operating voltages to suit Custom shaft sizes/profiles Tailored performance profiles Special OEM configurations Gear ratio selections

Applications:

The motor of reliable performance, advanced technical index, first has batch for robot, CNC machine tools, cigarette machine, automatic welding machine, automatic winding machine and navigation, tracking, artillery, radar and other modern high precision gear driving device. The motor can be matched with the speed machine, using different types of optical encoder.

Standard benefits

Wire feeder Industry robotics Automobile equipment Office equipment Mobility equipment

Competitive Advantage:

Light weight, small volume. Big starting torque, wide speed range. Low speed operation and good reversing performance. We have over 10 years experience in the industry,and have acquired certifications such as\"CE\"(Europe market)and ISO9000-2008 certificate.Our clients range are from Europe, South America and Southeast Asia to local retail and traders. Our factory covers more than 10, 000 square meters and we have set up a complete range of R&D with our own in house technicians, designers and engineers. Currently, has designed over 100 models of Electric Motor, the majority of which are exported to Europe, South America and Southeast Asia
