Home > Manufacturing & Processing Machinery > Manufacturing Equipment for Electrical & Electronic Product > Cable Extrusion Machine > Rod Breakdown Machine

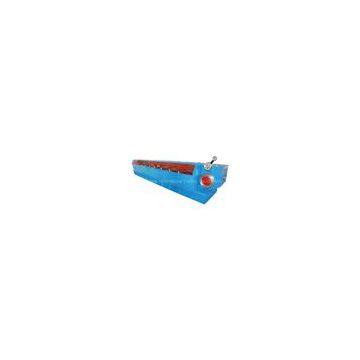

Rod Breakdown Machine
US$ 15 - 15
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
dawn
Place of Origin:
China
Model Number:
DL400/13
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
Intermediate Wire Drawing MachineUS$ 23 - 23MOQ: 1 Piece -
Flat Wire Drawing MachineUS$ 115 - 115MOQ: 1 Piece
-
Copper Clad Aluminum (CCA) Production LineUS$ 80 - 80MOQ: 1 Piece
-
Intermediate Wire Drawing Machine & AnnealerUS$ 38 - 38MOQ: 1 Piece
-
Fine Wire Drawing Machine & Continuous AnnealerUS$ 22 - 22MOQ: 1 Piece
Brand Name
dawn
Place of Origin
China
Model Number
DL400/13
Rod Breakdown Machine
Part one Description of Rod breakdown machine
DL450/13 high-speed copper wire drawing machine used to pull copper lever from 8 mm to 1.3 mm-3.5 (4.0) mm copper wire. Cable round with a one-row drawn, online annealing, machinery, electrical speed of a balanced match, easy to operate, fast to change module, non-stop automatic machine-to-line. The machine is easy to operate, high production efficiency, product quality advantages.
1. Main Performance
Inlet rod dia: 8mm
Output dia: 1.35~3.58mm
Quantity of dies: 13
Constant speed capstan dia: 450mm
Max. Lining speed: 25m/s
Size of circle coiler: 500* 800*1650mm
Type of annealing: AC/DC annealing
Main motor: Z4-315-12 1000rpm 280 KW (DC)
Motor for constant speed wheel: Z4-200-31 1500rpm 90 KW (DC)
Motor for circle coiler: Y180L-4 1450rpm 22 KW (AC)
Max. Power of annealing: 400KVA
2. Construction
Paying-off stand: 1 piece
Wire-Drawing Machine: 1 piece
Annealer: 1 piece
Tension control unit for accumulator: 1 set
Circle coiler and dual take-up: 1 for each
Die penetrator: 1 piece
Electrical control system: 1 set
Steam generator: 1 set
Part one Description of Rod breakdown machine
DL450/13 high-speed copper wire drawing machine used to pull copper lever from 8 mm to 1.3 mm-3.5 (4.0) mm copper wire. Cable round with a one-row drawn, online annealing, machinery, electrical speed of a balanced match, easy to operate, fast to change module, non-stop automatic machine-to-line. The machine is easy to operate, high production efficiency, product quality advantages.
1. Main Performance
Inlet rod dia: 8mm
Output dia: 1.35~3.58mm
Quantity of dies: 13
Constant speed capstan dia: 450mm
Max. Lining speed: 25m/s
Size of circle coiler: 500* 800*1650mm
Type of annealing: AC/DC annealing
Main motor: Z4-315-12 1000rpm 280 KW (DC)
Motor for constant speed wheel: Z4-200-31 1500rpm 90 KW (DC)
Motor for circle coiler: Y180L-4 1450rpm 22 KW (AC)
Max. Power of annealing: 400KVA
2. Construction
Paying-off stand: 1 piece
Wire-Drawing Machine: 1 piece
Annealer: 1 piece
Tension control unit for accumulator: 1 set
Circle coiler and dual take-up: 1 for each
Die penetrator: 1 piece
Electrical control system: 1 set
Steam generator: 1 set
