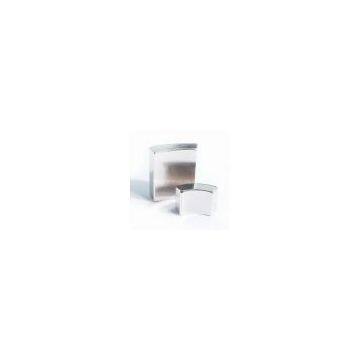

NdFeB Segment

@ MNd0026 @ Material: NdFeB @ Property: N35SH @ Br: 1.18 to 1.23T @ BHc >=876kA/m @ iHc >=1,592kA/m @ (BH) max: 267 to 290kJ/m³ @ Size: segment with different sizes @ Tolerance: all +/- 0.1mm @ Coating: NiCuNi @ Magnetization: not magnetized or diametrically magnetized @ Single weight: according to sizes @ Packing: packed in plastic bags, then put in cartons @ Application: motors @ Maximum working temperature: 150°C @ Curie temperature: 310 to 340°C @ Density: 7.5 to 7.6g/cm³ @ Br temperature coefficient: -0.09 to -0.12%/°C @ IHc temperature coefficient: -0.58 to -0.6%/°C @ Coating test: salt spray test, PCT test, coating thickness, and more @ Qualification standard: AQL = 0.65 @ Certification: RoHS certification, ISO9001 @ Saturation recoil strength: 2.4 to 3.2kA/m @ Tensile strength: 8.0kg/mm² @ Specific heat: 0.12kCal/kg, °C @ Young’s. modulus: 1.6 x 1,011N/m² @ Poisson’s ratio: 0.24 @ Electrical resistivity: 114μΩcm @ Flexural strength: 25kg/mm @ Coefficient of thermal expansion: 4 x 10 to 6/°C @ Rigidity: 0.64N/m² @ Vickers hardness: 600Hv @ Compressibility: 9.8 x 10 to 12m²/N @ Relative recoil permeability: 1.05 @ Thermal conductivity: 7.7kcal/(m.h. °C)
