Full Plastic Yellow 90 Degree RJ45 , Ethernet RJ45 Plug 8P8C 1 * 4 Port Without LED Gold Plated

Delivery Time:7 - 10 Work Days
Certification:ISO9001 : 2008 , SGS , RoHs

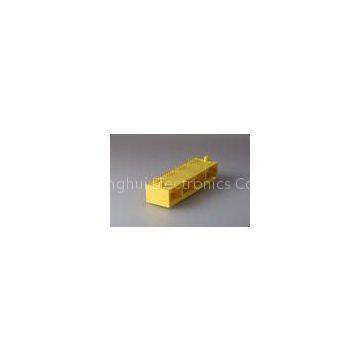

Full Plastic Yellow 90 Degree RJ45 8P8C 1 * 4 Port  Without  LED Gold Plated


Specifications

Series	Connectors, Interconnects
Connector Type	RJ45 Modular Jack
Mounting Type	Thru-Hole
Orientation	8P8C Side Enter
Termination	Solder
LED Color	Without LED
Shielding	No Shield
Plastic	Full Plastic Yellow


ELECTRICAL:

1. VOLTAGE RATING:125 VAC RMS.
2. CURRENT RATING:1.5 AMP.
3. CONTACT RESISTANCE:50 milliohms max.
4. INSULATION RESISTANCE:500 megohms min @ 500V DC.
5. DIELECTRIC WITHSTANDING
        RESISTANCE:1000V AC RMS 50Hz. 1min.

MECHNICAL:

1. HOUSING MATERIAL:glass filled polyester(UL94V-0).
2. CONTACT MATERIAL:phosphor bronze T=0.46mm (C5 100).
3. PLATING:glod plating over nickel.
4. DURRABILITY:750 cycles min.
5. PCB RETENTION PRE-SOLDER:1 LB min.
6. PCB RETENTION POST-SOLDER:10 LB min.

ENVIRONMENTAL:

1. STORAGE:-40℃ TO +85℃.
2. OPERATION:0℃ TO 70℃
3. WAVE SOLDER TEMPERTURE:230-250℃(5-10 seconds)
MATES WITH MODULAR PLUG CONFORMING TO FCC PART F.

Drawing

Full Plastic Yellow 90 Degree RJ45 8P8C 1 * 4 Port  Without  LED Gold Plated
