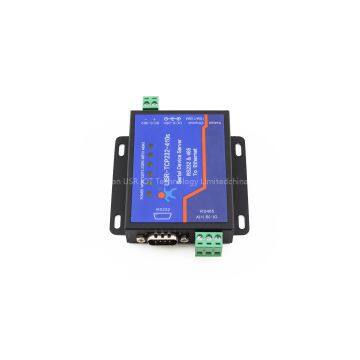

Serial to Etherent /RJ45 Converter, RS232 RS485 to TCP/IP Server

Serial to Etherent /RJ45 Converter, RS232 RS485 to TCP/IP Server thumbnail-1
Serial to Etherent /RJ45 Converter, RS232 RS485 to TCP/IP Server thumbnail-2
Serial to Etherent /RJ45 Converter, RS232 RS485 to TCP/IP Server photo-1
Serial to Etherent /RJ45 Converter, RS232 RS485 to TCP/IP Server photo-2
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
USR
Place of Origin:
China
Model Number:
USR-TCP232-410s
Contact Supplier Request Quote Chat Now
Jinan USR IOT Technology Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name USR
Place of Origin China
Model Number USR-TCP232-410s

Introduction


This is a serial rs485&rs232 to Ethernet server, used for data transparent transmission.USR-TCP232-410S is a dual serial server, which supports rs232 & rs485 working at the same time. It is based on Cortex-M4 solution And the internal of the serial server integrates TCP/IP protocol stack.Besides,USR-TCP232-410S has the function of  terminal power supply.



Features


Multiple indicator lights for convenient debugging

Power-line terminal for industrial application

ARM kernel and TCP/IP protocol stack

Auto-MDI/MDIX,RJ45 port with 10/100Mbps

TCP Server,TCP Client,UDP,UDP Server and HTTPD Client work mode

Two ports can work independently at the same time

Support virtual serial port and provide corresponding software USR-VCOM

Serial baud rate from 600bps to 230.4K bps;Check bit of None,Odd,Even,Mark and Space

DNS and DHCP supported

Provide PC TCP/IP SOCKET programming example,VB,C++,Delphi,Android,IOS

Built-in webpage;also can customize webpage for users

Reload button,one key to restore default settings

RJ45 with Link/Data indicator light,built-in isolation transformer and 2 KV electromagnetic isolation

The global unique MAC address bought from IEEE,user can define MAC address

Support upgrade firmware via network

Support keepalive,rapidly detect dead links

Support account and password,can be used to page login and network settings

Support one channel Websocket,realize bidirectional transparent transmisison bewteen webpage and serial 0

Support Modbus RTU to Modbus TCP

Support UDP broadcast function,send and receive data from all ip in the network


Parameter


Input Voltage : DC 5 ~ 36V

Certificate : CE, FCC, ROHS

Size :  80 x 62 x 24 mm

Operating Temp. : -40 ~ 85°C (industry)

Storage Temp.: -45 ~ 105°C, 5 ~ 95% RH(no condensation)

Interface : 1* RS232 & 1* RS485

Network Protocol : IP, TCP, UDP, DHCP, DNS, HTTP, ARP,ICMP, Web socket, Httpd client
