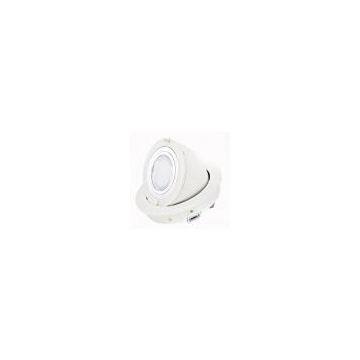

Help CenterCOB LED Ceiling Lamp
US$ 29 - 29
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
Auroras Lighting
Place of Origin:
China
Model Number:
AS-DL0410W
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
Brand Name
Auroras Lighting
Place of Origin
China
Model Number
AS-DL0410W
Item: COB LED Down Light / LED COB Down Light, COB LED Ceiling Light
01): LED Type: COB LED
02): LED Brand: Bridgelux
03): Power: 20W 30W
04): Light efficient:>75lm/W
05): Color: warm white/natural white/cold white
06): CRI:>80
07): Power factor:>0.81
08): Beam angle: 24/30/45Degree
09): Working temp.:-30 degree~60degree
10): Voltage input: 85V~240V AC
Advantages:
1): Sufficient power can replace traditional light
2): Low temperature inside of light body.
3): Energy saving, low power consumptiona
4): Environmental protection, lead free and RoHS compliant.
5): Low heat, no IR & UV light radiation
6): Quick & Simple installation, it is an excellent replacement of conventional lamp.
Special COB advantage:
1. Soft light and low sight hazard. By using new COB LED light source, it is very good for human eyes due to the even lighting surface.
2. Long Life Span. Combine the advantage of COB LED package, our lamp have very good heat dissipation and its life span could reach more than 50000 hours.
3. Stable performance. Rational structure design and constant current driver ensure the products’ stable performance.
4. Environmental friendly. No hazard materials occur when lighting.
Outter Size: diameter: 195mm
Cut hole size: diameter: 160mm
Application:
1): Home /office lighting ,display case lighting
2): Under cabinet lighting
3): Art lighting
4): Recess lighting,shelf lighting
Quality Control :
1,Standard anti-static and dust-free workshops;
2,Well-trained employees and advanced operating machines;
3,Finished products will be detected by detecting equipment;
4,Every product will be tested for 48 hrs,defect rate is 0.2-
0.5 percent;
5,All series with top quality can meet CE,UL,FCC,RoHS and EMC
demands.
Our Service :
1 ,Quick Response: Inquiry will be replied within 12 hrs.
2 ,Your private information will be well protected.
3 ,Well-trained & experienced staffs answer your enquires in
fluent English.
4 ,Sample order is accepted.
5 ,Discount is offered for bulk order.
6 ,OEM is welcome. We can manufacture your customized lights.
7,Sales promontion are often during the year to help you to
extend the business.
Trade Terms:
1,Payment: T/T,Western Union,L/C,Paypal;
2,Delivery Time: 3-7 days;
3,Shipping Port:Zhuhai;
4,MOQ: 20 pcs;
5,Your requested shipping methods are acceptable.
After-service:
We provide 2 years quality warranty.1 year of charge by the
factory.
We provide our exclusive agents & distributors 0.1%-0.3% free
spare parts to support your work,such as LEDs board,power
supply and finished products.
Package:
1pcs/box,12box/carton
EPE inside,paper outside
Usually we provide our own logo package, neutral packing and
OEM available per your request.OEM Min.Qty: 3000pcs.
Contract Manufacturing:
OEM Service Offered
Design Service Offered
Buyer Label Offered
What is COB?
There are basically 3 LED configurations:
LEDs in cylindrical packages
SMD LEDs (Surface Mounted Device)
COB LEDs (Chip On Board)
COB, (Chips on Board) , multi LED chips are packaged together as one lighting module. When it light up, it looks like a lighting panel..
Why COB? --Background
LED(light emitting diode) is new technology with advantage of saving energy and very long lifespan. But all LED lightsource can not be faultless especially SMD, HP, flux LED etc. Compare to traditional lighting such as fluorescent lamp, as it is super bright in a small size, it cause uncomfortable glare. In case of no diffused optical lens used, such LEDs usually cause glare and zebra strips . But when optical lens or cover used, it will cause light loss when LED beam pass through this lens or cover.
How COB LED Light source works?
COB LED is multi chips packaged, it can 10 times more increase lighting area, so it avoid uncomfortable glare by the maximum extent.
Auroras Lighting uses small size of chips to make COB LED package.
By now, for small size chip, ?some famous LED chip manufacturer can reach 249lm/watt @ 20mA. But big size LED chip can only reach 161lm/watt @350mA. The light efficacy decrease when chip size is bigger. Also when LED driver increase current to LED, the light efficacy per watt is even low.
The COB with small size chips will be a trend of LED light source package.
We holds the patent for invention for COB LED and lamp.
Advantage of COB?
1, less thermal resistance .
Among different LED components such as high power LED, SMD, dip etc, COB LED is the best in less thermal resistance and cooling.
For high power LED, the total Thermal Resistance are a. LED attach, b. Slug, c. Epoxy, d. PCB
Thermal Resistance: A+B+C+D
But for COB LED, are only . a. LED attach + d. PCB.
Thermal Resistance: A+D
So the COB LED is less thermal resistance, so the heat generated from LED chip can conduct outside quickly. Then assure the LED has long lifetime and high quality.
2, larger cooling area for LED chips.
3, Better light effect,No glare,protect eyes.
4, higher light efficacy.
Application of COB Technology
1, COB LED light sources
2, LED lighting fixture which use COB LED light source
