Certification:CE,UL, ROHS, 3C, ISO,FCC
Quick Detail:
1.Led outdoor waterproof video
2.Wide viewing angle video led
3.High brightness
4.Energy saving

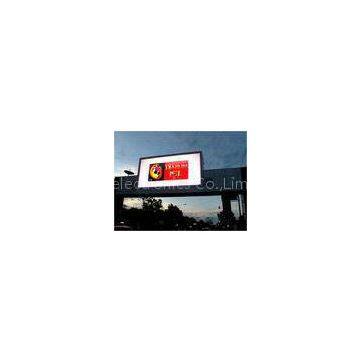

P20 Full Color Outdoor Advertising LED Display Screen with Wide Viewing Angle IP65
Specifications:
|
Part Number |
TeehoLED-P20 |
|
Resolution |
16(H)×16(V) |
|
Pixel Pitch |
20mm |
|
LED Configuration |
1R1G1B -DIP |
|
Pixel Density |
2,500 pixels/ ㎡ |
|
Module Size |
320×320mm |
|
Cabinet Size |
1280×960mm, 960×960mm, etc. |
|
Driving IC |
MBI5024 |
|
Driving Method |
Static State, Constant Current |
|
Weight |
58KG/sq.m. |
|
Mechanical Ratings |
|
|
Hanging Weight Support |
2T |
|
Surface Flatness |
Gap<0.5mm |
|
Optical Ratings |
|
|
Brightness |
>6,500cd/ ㎡ |
|
View Angle |
120°/60° |
|
Gray Scale |
8bits input, correction with 14bits |
|
Display COLOR |
16.7M |
|
Brightness Adjustment |
0～100% 10 level |
|
Power Supply |
|
|
Operation Power |
90～260V 50～60Hz |
|
Max. Power Consumption |
1000W/ ㎡ |
|
Average Power Consumption |
300W/ ㎡ |
|
Control System |
|
|
Control Mode |
Synchronous display with control PC by DVI |
|
Frame Update Frequency |
60～85Hz |
|
Screen Refresh Frequency |
300～1000Hz |
|
Gamma Correction |
-5.0～+5.0 |
|
Support Input |
Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI |
|
Control Distance |
Ethernet cable<120m or Fiber Optic<10Km |
|
Support VGA Mode |
1024×768, 1280×1024, 1600×1200, 1920×1280 |
|
Brightness Correction |
Pixel, Module, Cabinet |
|
Environmental |
|
|
Operating Temperature |
-20°～+60° |
|
Operating Humidity |
10～95% RH |
|
Operating Life |
100,000hours |
|
MTBF |
5000hours |
|
Protection Level |
IP65 |
|
Out of Control Rate |
<0.02% |
Description:
1. High Contrast: 4000: 1, which is a very high level to ensure a vivid image of our LED disp
