Wired and Wireless Strobe Siren Lighting Backup Battery

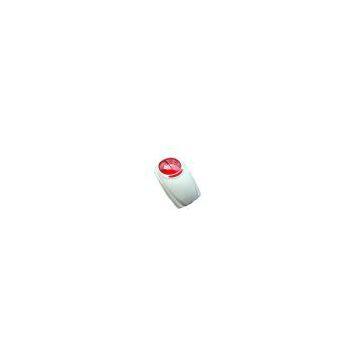

Figure 1 (positive product map)      Figure 2 (the product at the bottom of the map)

.

2.Technical parameters

1.. Rated voltage: DC12V

2. Operating range: DC6-15V

3. Current work: 200MA (DC = 12V)

4. Standby current: 6MA

5. Operating temperature range: -20  +60

6. Sound pressure range: 110 = 3DB (test 1-meter platform, the outside-to-noise ratio : 65DB)

7. SIREN + / SIREN-trigger: flashing lights flash every 2 seconds at a red LED light, whistle and ring (with the duration of the signal to trigger the same)

8. 8. LED + / LED-trigger: a red LED flash every 3 seconds on average 1 (duration of the trigger signal with the same)

9. Tamper switch to trigger: flashing lights flash every 2 seconds at a red LED light, whistle and ring (3-minutes)

10. External power supply to be cut: flashing lights flash every 2 seconds,  red LED light, siren alarm (last3-minutes)

11. Battery back-up: 6V/600MA  fitted with battery back-up, the green LED lights on

12. Wireless models: A. Radio frequency: 433MHZ/315MHZ

B. Wireless distance: 1) open distance 100 m

2)Indoor distance  30-50 meters

13. Test: A. Testing continued: 30 minutes
