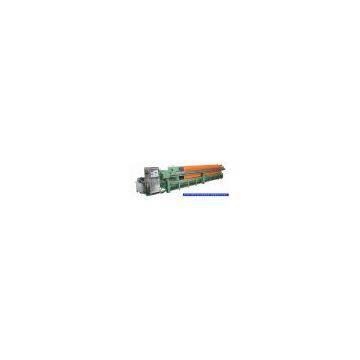

Automatic Program-controlled High Pressure Recessed Filter Press
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Total Employees:
101 - 200 People
Main Markets:
North America, South America, Eastern Europe
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
Automatic Program-controlled High Pressure Recessed Filter PressNegotiableMOQ: 1 Piece -
Auto Recessed Filter Press 1500x2000NegotiableMOQ: 1 Piece
-
Auto Hydraulic Pressure Holding Membrane Filter PressNegotiableMOQ: 1 Piece
-
Auto Holding Filter Press 1250x1250NegotiableMOQ: 1 Piece
-
High Pressure PP Membrane Filter PressNegotiableMOQ: 1 Piece
Detailed Product Description
Filtration plate is the key part of filter press. Different Material, shape of the plate will affect the quality directly.The filtration plate of this?filter press is made of cast iron.Our company has one 3T/hand one 5T/h environment- protection blast furnace, with 4000foundry and 400kiln.Established process production lines of vacuum tamping moulds and EPC moulding. The annual capacity of every casts is 4800 tons. Our labouratory can test the mixed material quickly, to ensure the quality of cats and material requirements. the cast plate that producted by our company with the properties is of high strength(tensile strength is >450MPa,yield strength is >280 MPa), high temperature resistance and good antisepsis function.Jingjin?Automatic program-controlled high pressure recessed filter press has such other features as follows:
1. wholly Automatic program-controlled.It can be working unattendedly.
2.Adopt upper washing device, with few actions and synchronous with auto plate shifting machine.The washing cycles can be set according to requirements(can be regulated on site)
3.JINGJIN plate?filtration speed improved 20%, density and intensity, anti-fatigue ,anti-aging speed improved one times
4.JINGJIN plate is comply with Germany DIN7129 standard , completely in common with the European&Amerian products.
5.Hydraulic cylinder is made by 27SIMn seamless steel pipe. Their precision can up to level of IT8
6. Pistons are made by steel 45 and plated with 0.06 chromium after surface processing with feature of high hardness, anti-wearing, long life-span.
7. The control part adopts system design concept, and adds auto running and check function.the system will always check whether the executive components is in normal state,or it will alarm on the display screen.It reserves DCS remote interface;thus realized remote monitoring and operation.
8. The main beams? is made of?high quality carbon steel, being characterized by pull resistance, flexural resistance, high intensity and good toughness.
9.We have a production line for manufacturing filtration cloth in order that we can offer customers? with all kinds of clothes. our company also equipped with testing facility that can perform the filtration testing for customers free of charge in order that we can select the most suitable filtration cloth for customers.
10. AUTOmatic drip tray open&close.
Filtration plate is the key part of filter press. Different Material, shape of the plate will affect the quality directly.The filtration plate of this?filter press is made of cast iron.Our company has one 3T/hand one 5T/h environment- protection blast furnace, with 4000foundry and 400kiln.Established process production lines of vacuum tamping moulds and EPC moulding. The annual capacity of every casts is 4800 tons. Our labouratory can test the mixed material quickly, to ensure the quality of cats and material requirements. the cast plate that producted by our company with the properties is of high strength(tensile strength is >450MPa,yield strength is >280 MPa), high temperature resistance and good antisepsis function.Jingjin?Automatic program-controlled high pressure recessed filter press has such other features as follows:
1. wholly Automatic program-controlled.It can be working unattendedly.
2.Adopt upper washing device, with few actions and synchronous with auto plate shifting machine.The washing cycles can be set according to requirements(can be regulated on site)
3.JINGJIN plate?filtration speed improved 20%, density and intensity, anti-fatigue ,anti-aging speed improved one times
4.JINGJIN plate is comply with Germany DIN7129 standard , completely in common with the European&Amerian products.
5.Hydraulic cylinder is made by 27SIMn seamless steel pipe. Their precision can up to level of IT8
6. Pistons are made by steel 45 and plated with 0.06 chromium after surface processing with feature of high hardness, anti-wearing, long life-span.
7. The control part adopts system design concept, and adds auto running and check function.the system will always check whether the executive components is in normal state,or it will alarm on the display screen.It reserves DCS remote interface;thus realized remote monitoring and operation.
8. The main beams? is made of?high quality carbon steel, being characterized by pull resistance, flexural resistance, high intensity and good toughness.
9.We have a production line for manufacturing filtration cloth in order that we can offer customers? with all kinds of clothes. our company also equipped with testing facility that can perform the filtration testing for customers free of charge in order that we can select the most suitable filtration cloth for customers.
10. AUTOmatic drip tray open&close.
