Help CenterCoupler
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Place of Origin:
China
Model Number:
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
Place of Origin
China

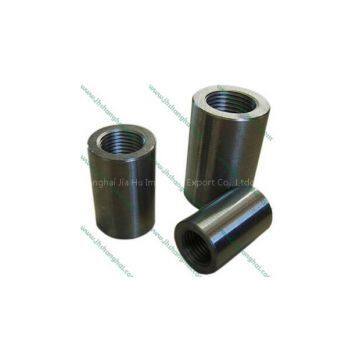

| Reinforcing Bar coupler | |||||||||
| Lapped joints are not always an appropriate means of connecting rebar. The use of Reinforcing Bar Couplers can simplify the design and construction of reinforced concrete and reduce the amount of reinforcement required. The strength of a mechanical splice is independent of the concrete which it is located and will retain its strength despite loss of cover as a result of impact damage or seismic event. | |||||||||
| Approximate dimensions for upsetting system: | |||||||||
| The system utilizes internally threaded couplers with simple threaded and is suitable for applications where the continuation bar can be rotated. | |||||||||
| Steel bar Dia(mm) | Metric thread pitch | OD (mm) | Length(mm) | Weight(kg) | |||||
| 12 | M14*2.0 | 22 | 30 | 0.043 | |||||
| 14 | M16*2.0 | 24 | 34 | 0.06 | |||||
| 16 | M20*2.5 | 26 | 40 | 0.078 | |||||
| 18 | M22*2.5 | 29 | 44 | 0.106 | |||||
| 20 | M24*3.0 | 32 | 48 | 0.152 | |||||
| 22 | M27*3.0 | 36 | 52 | 0.21 | |||||
| 25 | M30*3.5 | 40 | 60 | 0.295 | |||||
| 28 | M33*3.5 | 44 | 66 | 0.39 | |||||
| 32 | M36*4.0 | 50 | 72 | 0.585 | |||||
| 36 | M39*4.0 | 56 | 80 | 0.865 | |||||
| 40 | M45*4.0 | 62 | 90 | 1.09 | |||||
| Parameters of rolling splice: | |||||||||
| Steel bar rolling stamp straight screw head connection. With professional rolling stamp lathe to roll the end of steel bars, the straight screw is formed at one time. | |||||||||
| Steel Bar Dia (mm) | 16 | 18 | 20 | 22 | 25 | 28 | 32 | 36 | 40 |
| Adapter sleeve outside Dia | 24 | 27 | 30 | 32.5 | 39 | 41 | 46.5 | 53 | 58 |
| Adapter sleeve length | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 85 | 90 |
| Screw thread specs | M16.5*2.5 | M18.5*2.5 | M22.5*2.5 | M22.5*2.5 | M25.7*3 | M28.7*3 | M32.7*3 | M36.7*3 | M40.7*3 |
