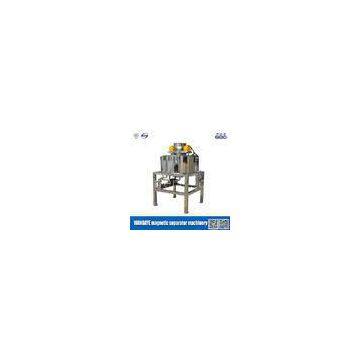

Large Wrap Angle Double Cooling Dry Magnetic Separator For Iron Removing

3T 380ACV 20DCA Eletromagnetic separator for Dried-powder water and oil double cooling

​Product characteristic

1. A newly development machine.

2. Large wrap angle and multi-magnetic-pole.

3. Easier to discharge the iron.

4. Efficiency of iron remove.

Operation process

Feed the dry powder from the hopper,  make the separator state at the magnetizing and run a vibrator at this time. After a period ,stop feeding, cut off the magnetic device, run the other vibrator(keep the two vibrator running), poke the raffle of drain of material funnel into the iron discharge. Then discharge the magnetic material absorbed on the magnetic media relying on the vibrating force.

Application scope

Electromagnetic dried-powder separators are applied in process the fine mineral particle, and suitable for using at the drought and water shortage area.

For example:Kaolin Beneficiation,Sodium potassium feldspar  Beneficiation,Quartz Beneficiation  ,Polarity powder material Beneficiation ,pharmacy  treatment,active pharmaceutical ingredient(API)treatment,paper pulp treatment,fiber stuff treatment,organic chemical industry and  related equipment,Fine chemicals and  related equipment.

Technical parameter
