Certification:CE, FCC, IP65

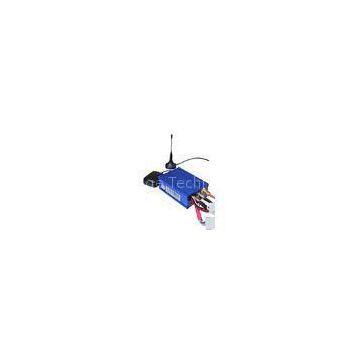

Real Time Vehicle GPS Tracking Systems With RS-232 Serial Port
Main Features:
● Based international newest chip, double core structure, powerful
● GPRS and SMS double channels, TCP and UDP double working mode
● Positioning based GPS reflected wave, assist with base station, strong capacity to prevent blocking to reduce the blind area
●Three proofing design, Quadruple protection for power source, 4 levels watchdog
● Low power consumption,
● Build-in high capacity backup battery.
● Broad intelligence interface to achieve automatic report station for bus, LED screen to release Ads
● Build-in TTS voice module to achieve the function of voice report.
● It can update remotely, easy to maintain
● Approved by 3C, and approved by national grade quality authentication.
|
Hardware features |
|
|
Hardware framework |
Adopt double core chip |
|
Communication module |
GPRS, SMS double channels module |
|
Reliability design |
Quadruple protection for power source, 4 levels watchdog |
|
PCB protection |
Three proofing protection |
|
Technical specifications |
|
|
Working voltage |
9～33 V/DC |
|
Limiting voltage |
100V/DC |
|
Car battery protecting voltage |
Low: 9V (12V car battery) or 20V(24V car battery)high:36V |
|
Power voltage of Anti-reversed connection |
≥100V |
|
Average working current |
70mA DC 12V |
|
Power saving mode |
＜20mA DC 12V |
|
Backup battery |
Working time 3h |
|
Dimension |
88x 62.5x 32.5mm(L x W x H) |
|
Canning material |
Aluminum alloy |
|
Main device weight |
0.26kgnet weight |
|
Interface |
|
|
GPS antenna |
SMA interface: －26dB cable length: 5m |
|
GSM antenna |
SMA interface: －3dB cable length: 3m |
|
Vehicle detecting interface |
9 routes signal input |
|
AD detecting interface |
2 routes AD signal input (for enhancement type II, III, IV) |
|
Video interface |
Serial port for video input, it can expand to 4 video input |
|
Voice interface |
2 route voice port |
|
Data interface |
2 route RS-232 serial port |
Product Functions:
1.Signal detecting and control:
13 routes signal sensor, 17 vehicle status detecting, intelligence mode and forced mode to cut fuel/circuit, user-defined backup output control.
2.Alarm:
19 alarms, 3 modes of alarm.
3.Monitoring:
vehicleautomatic tracking/monitoring, regions setting, geo-fence, GPS mileage statistics, blind area supplementary report, traces storage, base station positioning.
4.Road detecting:
road detecting, road detecting calculation, departure alarm, speeding alarm, entry/exit station report…
5.Voice and phone call:
hands free phone, remote listen in, voice reminding device, TTS voice report.
6.Fuel consumption detecting:
build-in 2 routes AD input interface, equipped floater attenuation cable can measure fuel consumption, and equipped temperature can detect the temperature.
7.LED screen for release Ads info:
Downlink Ads to screen via RS232 port and show Ads on the screen.
8.Image:
monitor by image, store/record image, image transmission.
9.Remote update:
main device’s program was support to remote download; u
