Industrial Filter Mini Pleated Media Mutiple H11 V-bank Hepa Filter

Industrial Filter Mini Pleated Media Mutiple H11 V-bank Hepa Filter thumbnail-1
Industrial Filter Mini Pleated Media Mutiple H11 V-bank Hepa Filter thumbnail-2
Industrial Filter Mini Pleated Media Mutiple H11 V-bank Hepa Filter thumbnail-3
Industrial Filter Mini Pleated Media Mutiple H11 V-bank Hepa Filter photo-1

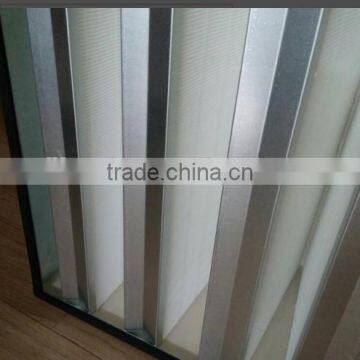

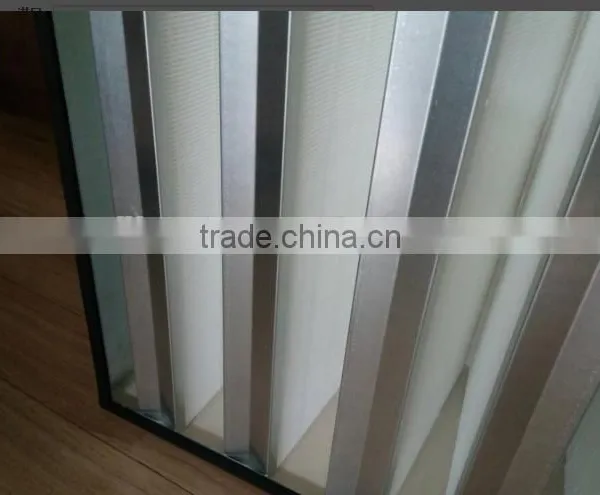

Industrial Filter Mini Pleated Media Mutiple H11 V-bank Hepa Filter photo-2

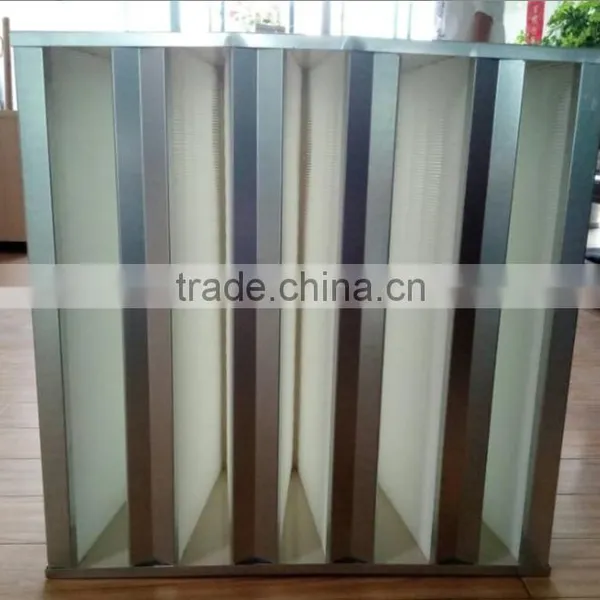

Industrial Filter Mini Pleated Media Mutiple H11 V-bank Hepa Filter photo-3
US$ 1 - 50 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
H11 V-bank hepa filter
Model Number:
H11 V-bank hepa filter
Contact Supplier Request Quote Chat Now
Shanghai Sffilter Industry Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai H11 V-bank hepa filter
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name H11 V-bank hepa filter
Model Number H11 V-bank hepa filter

Industrial filter Mini Pleated Media Mutiple H11 V-bank hepa filter

Product Description

Industrial filter Mini Pleated Media Mutiple H11 V-bank hepa filter

Industrial filter Mini Pleated Media Mutiple H11 V-bank hepa filterIndustrial filter Mini Pleated Media Mutiple H11 V-bank hepa filter

 Industrial filter Mini Pleated Media Mutiple H11 V-bank hepa filter



Features:

1,Low pressure drop V-bank filter design

2,Mini-pleat design, glass fiber filter paper

3,High dust loading capacity, long service life

4,Firm structure, good performance under turbulent air flow

5,Efficiency:65%(M6),85%(F7),90%(F8)(EN779)

                        99.95%@MPPS(H13)

                        99.995%@MPPS(H14)



Product Description:

V-Bank Mini-pleat filter is a heavy duty filter and it is applicable to system with constant or variable air flow.

The specially designed thermoplastic rubber septum can maintain the distance between each pleat. This design can increase the filter surface area, decrease its power consumption and lower the operational cost.

Wide size are available.



Product Application
Industrial filter Mini Pleated Media Mutiple H11 V-bank hepa filter
Company Information

Industrial filter Mini Pleated Media Mutiple H11 V-bank hepa filter

Certifications

Industrial filter Mini Pleated Media Mutiple H11 V-bank hepa filter

Customer Visit

Industrial filter Mini Pleated Media Mutiple H11 V-bank hepa filter

FAQ

Industrial filter Mini Pleated Media Mutiple H11 V-bank hepa filter

Contact Us

Industrial filter Mini Pleated Media Mutiple H11 V-bank hepa filter





Type:V-bank filter  No of banks: 4V Surface:24m² Size:585X585X292mm Efficiency:99.995% Characteristic:big air flow with comparative low prefilter drop,long enough use life. The air filter are not limited to the below table, but can be produced according to the customers' design and specifications



Part NO.

Dimensions (mm)

Dimensions (inch)

Type

No. of Banks

   Remark

1

277*585*292

11*23*11.5"

V-Bank

4V





1,Be from low

efficiency(prefilter) to high efficiency (HEPA, ULPA)















2,Be big air flow with comparative low pressure drop, long enough use life















3,The air filters not limited to the table, but can be produced according to the customers’ design and specifications.



























4,The HVAC air filter can be produced according to the customers’ design and requirements

2

305*305*70

12*12*2.8"

Panel

–

3

305*305*124

12*12*4.9"

V-Bank

4V

4

305*305*149

12*12*5.9"

V-Bank

4V

5

305*610*292

12*24*11.5"

V-Bank

5V

6

380*380*203

15*15*8"

V-Bank

6V

7

380*380*292

15*15*11.5"

V-Bank

6V

8

457*457*292

18*18*11.5"

V-Bank

6V

9

508*508*203

20*20*8"

V-Bank

4V

10

585*585*292

23*23*11.5"

V-Bank

4V

11

610*450*150

24*17.8*6"

V-Bank

5V

12

610*610*292

24*24*11.5"

V-Bank

6V

13

610*610*292

24*24*11.5"

V-Bank

4V

14

610*610*292

24*24*11.5"

V-Bank

5V

15

910*610*292

36*24*11.5"

V-Bank

5V

16

595*900*292

23.5*35*11.5"

V-Bank

7V

17

592*287*295

23.3*11.3*11.6"

V-Bank

2V

18

490*287*295

19.3*11.3*11.6"

V-Bank

2V

19

287*287*295

11.3*11.3*11.6"

V-Bank

2V

20

610*287*295

24*11.3*11.6"

V-Bank

2V

21

490*592*292

19.3*23.3*11.5"

V-Bank

3V

22

490*490*292

19.3*19.3*11.5"

V-Bank

3V

23

490*287*292

19.3*11.3*11.5"

V-Bank

3V

24

592*592*295

23.3*23.3*11.6"

V-Bank

3V

25

592*490*295

23.3*19.3*11.6"

V-Bank

3V

26

592*287*295

23.3*11.3*11.6"

V-Bank

3V

27

592*592*292

23.3*23.3*11.5"

V-Bank

3V

28

592*490*292

23.3*19.3*11.5"

V-Bank

3V

29

592*287*292

23.3*11.3*11.5"

V-Bank

3V

30

592*592*295

23.3*23.3*11.6"

V-Bank

4V

31

592*490*292

23.3*19.3*11.5"

V-Bank

4V

32

592*287*295

23.3*11.3*11.6"

V-Bank

4V

33

592*592*295

23.3*23.3*11.6"

V-Bank

4V

34

592*490*295

23.3*19.3*11.6"

V-Bank

4V

35

592*287*295

23.3*11.3*11.6"

V-Bank

4V

36

610*610*292

24*24*11.5"

V-Bank

4V

37

305*610*295

12*24*11.6"

V-Bank

5V

38

610*610*295

24*24*11.6"

V-Bank

5V

39

305*305*292

12*12*11.5"

V-Back

4V

40

600*300*292

23.6*11.8*11.5"

V-Back

5V

41

460*600*150

18*23.6*5.9"

V-Back

4V

42

425*425*292

16.8*16.8*11.5"

V-Back

4V

43

484*484*220

19*19*8.7"

V-Back

4V



44

320*320*220

12.6*12.6*8.7"

V-Back

6V



45

1220*610*150

48*24*6"

V-Back

4V



46

1220*610*292

48*24*11.5"

V-Back

5V
