Home > Products > Shear Beam Load Cell > Small Hopper Shear Beam Compression Load Cell Strain Gauge Of Alloy Steel

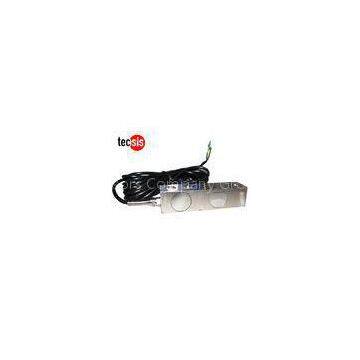

Small Hopper Shear Beam Compression Load Cell Strain Gauge Of Alloy Steel
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
Product Details
Brand Name: | tecsis | Place of Origin: | China | Model Number: | F3831 |
Product Description
Small Hopper Shear Beam Compression Load Cell Strain Gauge Of Alloy Steel
Features :
Model:F3831 Capacity: 100kg~10t Simple structure, easy to install High comprehensive precision, high stability Made of alloy steel Small deflection Delicate structureDescription:
F3831 is a kind of Double Ended Shear Beam Load Cell, it belongs to Compression Load Cell, it is made of alloy steel, it is fully potted with special chemical compounds to IP67(≥500kg) to protect the cell from water and moisture attack, the capacity of anti deviated load and impact is very strong.
F3831 load cell is available in the capacities 100kg to 10t, its structure is very compact, it belong to high capacities with low profile, on the process of making this load cell, there is unavoidable to arise side force in the normal operations,
The design of steel ball and head structure provides excellent performance, which can reset and ensure the force transferring, the typical example for side force resistance is the application motor truck scales.
F3831 load cell can be used for Truck scales, rail scales, Hopper, tank weighing and Chemical, Industries of Foods, Pharmaceuticals, which has huge important on weighing and control.
Application:
F3831 is suitable for the fields of Truck scales, rail scales, Hopper, tank weighing and Chemical, Industries of Foods, Pharmaceuticals, which has huge important on weighing and control.
Technical parameters:
Specifications |
Technique |
Rated output |
2.0±10%mV/V 3.0±10%mV/V (Option) |
Zero balance |
±2% F.S. |
Non-linearity |
0.03% F.S. |
Hysteresis |
0.03% F.S. |
Repeatability |
0.03% F.S. |
Creep (30min) |
0.03% F.S. |
Temp. effect on output |
0.025% F.S. / 10ºC |
Temp. effect on zero |
0.025% F.S. / 10ºC |
Input impedance |
385±10Ω |
Output impedance |
350±5Ω |
Insulation |
≥5000MΩ/ 100VDC |
Recommended excitation |
10V |
Maximum excitation |
15V |
Compensated temp. range |
- 10~60ºC |
Operation temp. range |
- 20~80ºC |
Safe overload |
150% F.S. |
Ultimate overload |
200% F.S. |
Cable size |
Ø5×6000 mm |
Protection class |
IP65(<500kg) IP67(≥500kg) |
Cable color code |
Input: Red(+) Black(-); Output: Green(+) White(-); |
Size and capacity:
Schematic Wiring Diagram :
