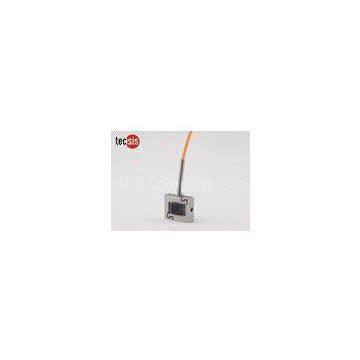

Micro Force Sensor S-type Load Cells With Stainless Steel Up To 2T , Simple Structure
Features :
Model:F2808 Tension and compression load cell High comprehensive precision, high stability Simple structure, easy to install Small size, easy to use Made of stainless steel Capacity:5N~2000NDescription:
F2808 has compact structure, simple to install.
With strain gauge technology.
It can support compression and tension.
With the miniature size, it can be used in the limited space.
Due to the stainless steel and the small size, the safe overload is 150% and the ultimate overload can be 300%.
There is a thermoplastic pipe on the cable, it is an adjustable resistence. We need to install this as the size of the load cell is very small.
The capacity is 5N to 2000N, it can measure the force of pull and push dynamometer, hopper scale and industrial measuring systems.
Applications:
Mainly used for pull and push dynamometer, hopper scale and industrial measuring systems.
Technical parameters:
|
Specifications |
Technique |
|
Rated output |
2.0±10%mV/V |
|
Zero balance |
±2% F.S. |
|
Non-linearity |
0.15% F.S. |
|
Hysteresis |
0.05% F.S. |
|
Repeatability |
0.05% F.S. |
|
Creep (30min) |
0.05% F.S. |
|
Temp. effect on output |
0.05% F.S. / 10ºC |
|
Temp. effect on zero |
0.05% F.S. / 10ºC |
|
Input impedance |
350±30Ω |
|
Output impedance |
350±5Ω |
|
Insulation |
≥5000MΩ/ 100VDC |
|
Recommended excitation |
5V |
|
Maximum excitation |
15V |
|
Compensated temp. range |
- 10~60ºC |
|
Operation temp. range |
- 20~80ºC |
|
Safe overload |
150% F.S. |
|
Ultimate overload |
300% F.S. |
|
Cable size |
Ø2×1500 mm |
|
Protection class |
IP66 |
|
Cable color code |
Input: Red(+) Black(-); Output: Green(+) White(-); |
Size and capacity:
Schematic Wiring Diagram :
