Home > Lights & Lighting > LED Interior Lighting > LED Bulb Light > WS2811 Addressable Led Strip

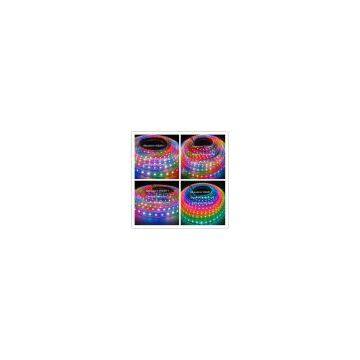

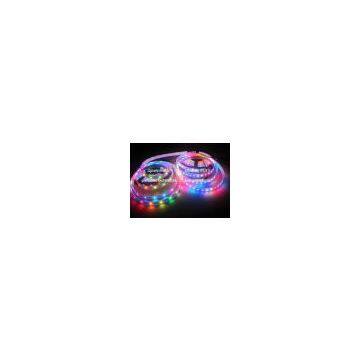

WS2811 Addressable Led Strip

WS2811 Addressable Led Strip thumbnail-3

US$ 13.5 - 13.5 MOQ: 5 Pieces

Key Specifications

Get Latest Price

Brand Name:

Place of Origin:

China

Model Number:

GE68RGB2811A

Contact Supplier Request Quote Chat Now

Greeled Electronic Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Brand Name GE

Place of Origin China

Model Number GE68RGB2811A

/productshow.asp?ArticleID=Y0YY52S0YX

Model No. GE68RGB2811A (non-waterproof)

GE68RGB2811C(IP67 waterproof)

Working Voltage: DC5V

Led QTY: 68leds/M

Led Type: SMD5050

IC Type: WS2811 (Built-in LED)

Dimension: 5000mm*14.0mm*4mm (waterproof)

5000mm*12.0mm*2.5mm(non-waterproof)

Pixel QTY: 68pixels/m ,each led addressable

PCB Color: White or Black color

Power Consumption: Max 20.4W/M

Brightness Level: 256 level

Emitting Color: RGB/W/R/G/B/other single color

Waterproof IP grade:silicon tube IP67/ non-waterproof

Video online:
http://youtu.be/xP5EKaM5yc4

http://youtu.be/jnFYsFhvHeo

electrostatic prevention bag digital led strip with ws2811 integrated

LED Specification:

Dimensions: 5mm x 5mm x 1mm

Voltage: 5.0V

Current 20ma per color, 60mA total at full brigtness

Viewing angle: 120 degres.

Luminous intensity at 5V: R=520mcd G=1000mcd B=300mcd.

Pin assignments:

1 - Data in

2 - VCC

3 - Data out

4- GND

At 5mm x 5mm x 1mm these are the world's smallest addressable pixels. They are designed to be mounted onto a SMD circuit board, but they can be hand soldered for small projects - three wires into the pixel and three out. These use the same data protocol as the WS2811 LED pixels we sell which means they take a 24 bit payload providing a color pallette of 16.7 million colors.If you look at the product images you'll see the LED itself is in a milky white encapsulant which adds to the quality and visibility of the light produced. At full brightness, these are very bright, a little too bright to comfortably stare at.
